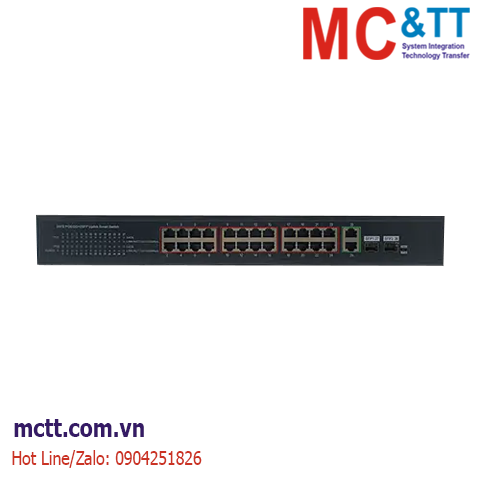

Switch 24 cổng PoE + 2 cổng Gigabit Ethernet + 2 Gigabit SFP JHA Tech JHA-P322024CBTH
JHA-P322024CBTH series switches provide from one network node uses Cat5 cable simultaneous transmission of data and power, when AC power is not power or take power inconvenient (such as PTZ cameras and WiMAX devices), JHA-P322024CBTH series is designed for wireless networks, security automation applications.
JHA-P322024CBTH series switches dramatically reduces the cost of wiring the power user, wireless LAN access points, video surveillance cameras and other equipment must be spent to better support the new services and applications, providing users with a higher flexibility and mobility.
Advanced self-sensing algorithm only for standard PD terminal equipment power supply, and therefore do not need to worry about damage to private or non-standard PoE PoE equipment. Simple and reliable design, JHA-P322024CBTH series of automatic identification PoE requirements, speed, duplex, and use Auto Up link TM type of cable.
Tính năng
- Use unshielded twisted pair can combine up to four power supply terminal equipment.
- Support 24 10/100Base-TX PoE port,2 10/100/1000mbps UP Link,2 Gigabit SFP Fiber Port;
- PoE power supply distance 250m.
- Support IEEE802.3 af (15.4W) and IEEE802.3 at (30W) PoE standard.
- Dynamic LED for easy status at any time for the port to work with the power supply situation.
- Through the secondary lightning protection chip design, while avoiding electrostatic induction, circuit isolation protection Plug and Play.
- No configuration, power is automatically supplied to the adaptive equipment
Thông số kỹ thuật
| Model |
24+2+2 port 250m POE switch(Built-in) |
| Model No. |
JHA-P322024CBTH |
| PoE Port |
1 to 24 port support IEEE802.3af/at |
| UP link port |
25th-26th port support 1000Mbps |
| Fiber Port |
1000M Fiber port |
| PoE output |
15.4W/30W IEEE802.3af/at |
| PoE whole power |
≤400W |
| PoE type |
End-span |
| Power distance |
≤250m |
| Network Standard |
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
| Network Medium |
100/1000BASE-TX: 5 class and above non shielded twisted pair |
| Data Distance |
≤250m |
| Switch capability |
12Gbps |
| Forwarding Mode |
Store and forward |
| Forwarding Rate |
100Mbps:14880pps
1000Mbps:14800pps
1000BASE-T: 1488095pps/port |
| MAC Address |
2K MAC address table |
| Port function |
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| Indicator |
LINK/ACT. 100Mbps;POE Status indicator; POWER indicator;EXTENDER indicator |
| Working Environment |
Working Temperature: -10°– 55°C |
| Input power |
AC100-240V 50/60HZ |
| Weight |
4kg |
| Size |
440mm*285mm*55mm(L*W*H) |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-P322024CBTH |
24 Ports 10/100M PoE+2 Uplink Gigabit Ethernet Port+2 Gigabit SFP Fiber Port,build-in power supply,total 400W, 1U Type. |
