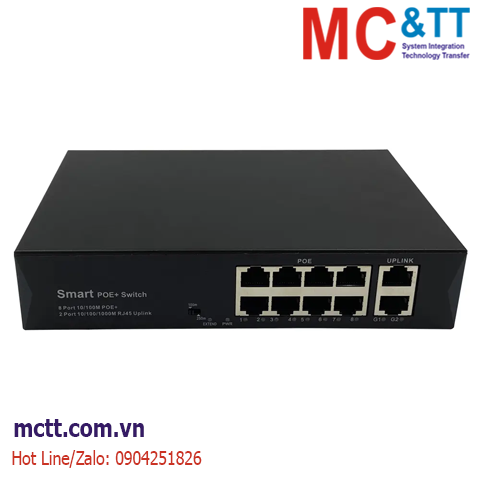

Switch 8 cổng PoE + 2 cổng Gigabit Ethernet JHA Tech JHA-P30208CBMHGW
The JHA-P30208CBMHGW is a 10/100Mbps unmanaged PoE switch. It has 8*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W, and the maximum POE output power is 120W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network. Unmanaged model, plug and play, no configuration, easy to use.
Tính năng
- 8*10/100M + 2*10/100/1000M RJ45 Port Smart PoE Switch,1-8 ports support IEEE 802.3af/at;
- Comply with IEEE 802.3, IEEE 802.3u standards;
- PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
- Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
- The power supply total is 120W
Thông số kỹ thuật
|
Model |
JHA-P30208CBMHGW |
|
Interface Characteristics |
|
Fixed Port |
8*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-8 can support 10/100Base-TX auto detect, port 9-10 can support 10/100/1000Base-T auto detect, full / half duplex MDI / MDI-X adaptive |
|
Functional Switch |
1*(Extend) Note: when the switch state changes, it must be restarted before the PoE switch function can take effect |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
11.8Gbps (Non-blocking) |
|
Forwarding
Rate@64byte |
4.17Mpps |
|
MAC |
3k |
|
Buffer Memory |
2M |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green)
Functional switch: EXTEND (Green) |
|
PoE & Power |
|
PoE Port |
Port 1 to 8 |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
120W/ (AC100-240V) |
|
Power Consumption |
Standby <5W, Full load <120W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 2.2A |
|
Physical Parameter |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension |
195*130*40mm |
|
Net /Gross Weight |
<0.8kg / <1.2kg |
|
Installation |
Desktop, wall mounted |
|
Certification & Warranty |
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Download
Datasheet
Thông tin đặt hàng
|
Model |
Description |
|
JHA-P30208CBMHGW |
Unmanaged PoE switch, 8*10/100M PoE ports+2*10/100/1000M RJ45 ports, built-in 120W power supply,support IEEE802.3af/at PoE standard, support VLAN isolation and 10M/250m transmission. |
