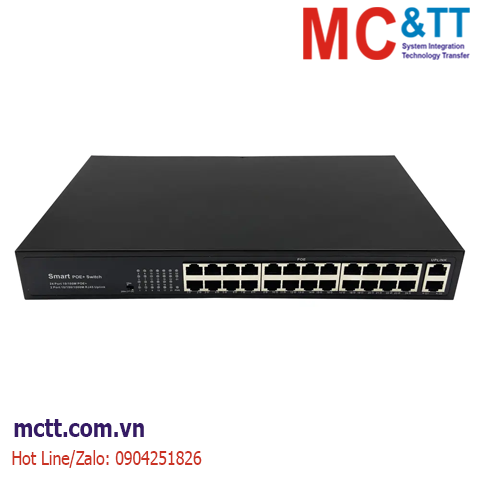

Switch 24 cổng PoE + 2 cổng Gigabit Ethernet JHA Tech JHA-P302024CBMHGW
The JHA-P302024CBMHGW is a gigabit uplink unmanaged PoE switch. It has 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support IEEE802.3af/at PoE standard. Single port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. Through a network, cable meets the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economically efficient network.Unmanaged mode, plug, and play, no configuration, easy to use.
Tính năng
- 24*10/100M + 2*10/100/1000M RJ45 Port Smart PoE Switch,1-24 ports support IEEE 802.3af/at;
- Comply with IEEE 802.3, IEEE 802.3u standards;
- PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
- Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
- The power supply total is 300W
Thông số kỹ thuật
|
Model |
JHA-P302024CBMHGW |
|
Interface Characteristics |
|
Fixed Port |
24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-24 can support 10/100Base-TX and port 25-26 support 10/100/1000Base-T(X) auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Functional Switch
|
100m&250m function switch. The default is OFF |
|
When 100m turned on, the default is 100m transmission. |
|
When 250m turned on, port 9-16/17-24 support 10M/250m long-distance transmission |
|
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
14.8Gbps (Non-blocking) |
|
Forwarding
Rate@64byte |
6.55Mpps |
|
MAC |
16K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
10K |
|
LED Indicator |
Power: PWR (Green), network: Link(Green), PoE: PoE (Green) |
|
PoE & Power Supply |
|
PoE Port |
Port 1 to 24 IEEE802.3af/at |
|
Power Supply Pin |
1/2(+), 3/6(-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
300W (AC100-240V) |
|
Power Consumption |
Standby <20W, Full load <300W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 4.1A |
|
Physical Parameter |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
330*204*44mm |
|
Net /Gross Weight |
<2.3kg / <3kg |
|
Installation |
Desktop, Wall-mounted, Rack-mounted |
|
Certification & Warranty |
|
Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Download
Datasheet
Thông tin đặt hàng
|
Model |
Description |
|
JHA-P302024CBMHGW |
Unmanaged PoE switch, 24*10/100M PoE ports+2*10/100/1000M uplink RJ45 ports,built-in 300W power supply |
