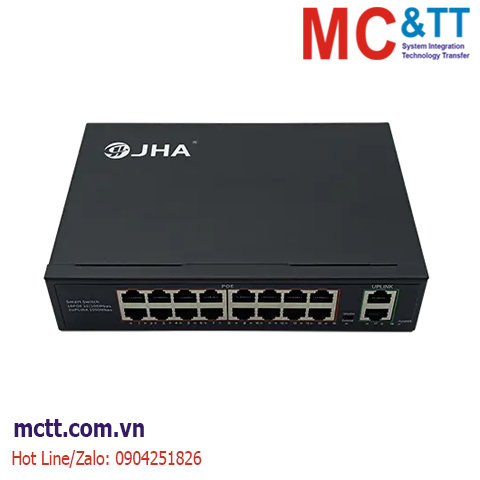

Switch 16 cổng PoE + 2 cổng Gigabit Ethernet JHA Tech JHA-P302016CBMZH
JHA-P302016CBMZH series switches provide from one network node uses Cat5 cable simultaneous transmission of data and power, when AC power is not power or take power inconvenient (such as PTZ cameras and WiMAX devices), JHA-P302016CBMZH series is designed for wireless networks, security automation applications.
JHA-P302016CBMZH series switches dramatically reduces the cost of wiring the power user, wireless LAN access points, video surveillance cameras and other equipment must be spent to better support the new services and applications, providing users with a higher flexibility and mobility.
Advanced self-sensing algorithm only for standard PD terminal equipment power supply, and therefore do not need to worry about damage to private or non-standard PoE PoE equipment. Simple and reliable design, JHA-P302016CBMZH series of automatic identification PoE requirements, speed, duplex, and use Auto Up link TM type of cable.
Tính năng
- 16*10/100mbps POE port,2*10/100/1000mbps UP Link;
- 250m Distance;Vlan support
- Watchdog function
- Supports Quality of Service (QoS)
- Support IEEE802.3AF/AT
- Whole Power:250W(52V 4.8A), internal power supply;
- All port supported by MDI/MDIX auto flip and self negotiation
- Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
- Each port max. power supply reached 30W.
Thông số kỹ thuật
| Model |
16+2 port 250m POE switch(Built-in) |
| Model No. |
JHA-P302016CBMZH |
| PoE Port |
1 to 16 port support IEEE802.3af/at |
| UP link port |
17th-18th port support 1000Mbps |
| PoE output |
15.4W/30W IEEE802.3af/at |
| PoE whole power |
≤200W |
| PoE type |
End-span |
| Power distance |
≤250m |
| Network Standard |
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
| Network Medium |
100/1000BASE-TX: 5 class and above non shielded twisted pair |
| Data Distance |
≤250m |
| Backplane bandwidth |
12Gbps |
| Forwarding Mode |
Store and forward |
| Forwarding Rate |
10BASE-T:14880PPS/port100BASE-tx:14800pps/port
1001000BASE-T:1488095pps/port |
| MAC Address |
2K MAC address table |
| Port function |
Power priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| Indicator |
LINK/ACT. 100Mbps;POE Status indicator; POWER indicator;EXTENDER indicator |
| Working Environment |
Working Temperature: -10°– 55°C |
| Input power |
AC100-240V 50/60HZ |
| Weight |
1.3kg |
| Size |
202mm*140mm*45mm(L*W*H) |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-P302016CBMZH |
16 Ports 10/100M PoE+2 Uplink Gigabit Ethernet Port, build-in power supply,with VLAN, Watchdog function |
