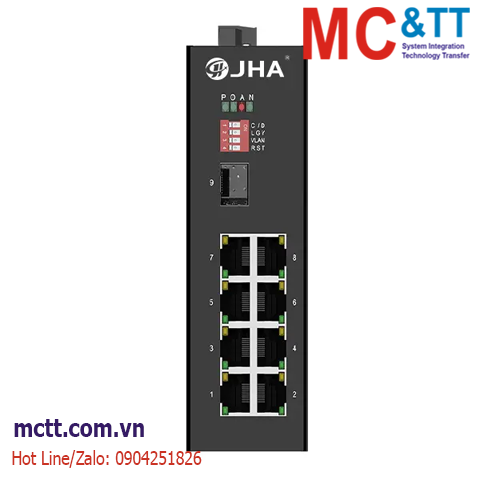

Switch công nghiệp 8 cổng Ethernet + 1 cổng Gigabit SFP JHA Tech JHA-IGS10F08
JHA-IGS10F08 is a plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
JHA-IGS10F08 support 1 1000Base-X SFP slot and 8 10/100Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-58V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Tính năng
- Support 1 1000Base-X SFP slot and 8 10/100Base-T(X) Ethernet port.
- Support IEEE802.3, IEEE802.3u, IEEE802.3x.
- Plug-and-play, 10/100Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC10-58V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted
Thông số kỹ thuật
|
Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Switching Performance |
Forwarding Rate: 4.16Mpps
Transmission Mode: Store and Forward
Packet Buffer Size: 1M
Backplane Bandwidth: 5.6Gbps
MAC Table Size: 8K
Delay Time: < 4μs |
|
Ethernet Port |
10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation |
|
Fiber Port |
1000Base-X SFP slot |
|
LED Indicator |
Power Indicator: PWR
Port Indicator: LINK / ACT |
|
Power Supply |
Input Voltage: DC10-58V
Connector: 6 bit 5.08mm removable terminal block
Full Load: <5W
Protection Mechanism: overload protection, reverse connection protection, redundancy protection |
|
Mechanical Structure |
Shell: IP40 protection, aluminum alloy housing
Dimension: 143*104*48mm( L*W*H )
Weight: 550g
Installation: DIN-Rail mounting, wall mounting |
|
Operating Environment |
Operating Temperature: -40-85°C
Storage Temperature: -40-85°C
Ambient Relative Humidity: 5%-95% (non-condensing) |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)
EN61000-4-3 (R/S), Level 3 at 10V/m
EN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port)
EN61000-4-5 (Surge), Level 4 at 4kV
EN61000-4-6 (CS), Level 3 at 10V/m
EN61000-4-8, Level 5 at 100A/m
Shock:IEC 60068-2-27
Free Fall:IEC 60068-2-32
Vibration:IEC 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-IGS10F08 |
Unmanaged Industrial Ethernet Switch, 1 1000Base-X SFP Slot and 8 10/100Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature |
| Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional. |
