Module chuyển đổi hồng ngoại IR sang RS-232/485 Modbus RTU ICP DAS IR-210 CR

Chia sẻ:
Mã sản phẩm: IR-210
Thương hiệu: ICP DAS
Tình trạng:

Universal IR Learning Module (6x IR outputs, 224x IR cmds)

Liên hệ
Mô tả

Module chuyển đổi hồng ngoại IR sang RS-232/485 Modbus RTU ICP DAS IR-210 CR

Feature

  • 6 IR output channels.
  • 1 IR learning input.
  • Supports 6 IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
  • IR command capacity: 224.
  • Supports RS-232 and RS-485 serial interface.
  • Supports Modbus RTU protocol to emit IR commands.
  • Provides ASCII String Command (DCON protocol) to emit IR commands.
  • Provides API library for PC program development.
  • Includes 2x CA-IR-SH2251 IR emitter cables.
    (Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)

Introduction

IR-210 is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-210 supplies 6 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus RTU and DCON protocols provide flexible expansion and control on the module. Besides, IR-210 software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC… etc.), IR-210 is well-suited for smart home and building automation.

Application

  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation
  • ICP DAS PAC with the IR Remote Application

Specifications

LED Indicators
Status 1 x TR (IR Transmitting)
1 x LN (IR Learning)
1 x PWR (Power)
Infrared
IR Learning Input 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz.
IR Output Channels 6 channels with 3.5 mm audio jack
IR Remote Commands Capacity: 224
COM Ports
Ports RS-232 (TxD, RxD, GND)
RS-485 (DATA+, DATA-)
Baud Rate 9600, 19200, 38400, 57600, 115200
Protocol Modbus RTU Slave
Power
Consumption Stand By:0.65 W
Using 1 IR Output:2.5 W
Using 6 IR Outputs:12 W (Max.)
Mechanical
Dimensions (mm) 33 x 78 x 107 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

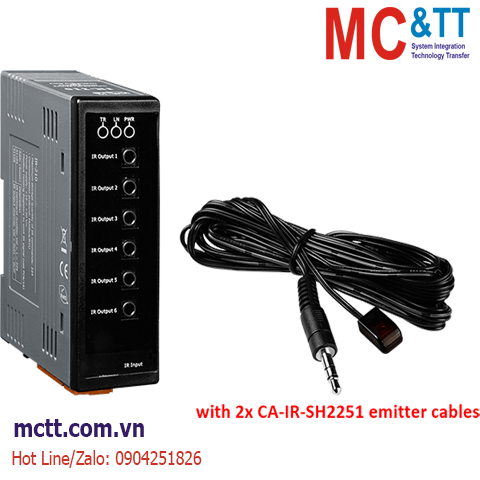

IR-210     CR  Universal IR Learning Module (6x IR outputs, 224x IR cmds) (RS-232, RS-485) (RoHS)
Inlcudes 2x CA-IR-SH2251 emitter cables
