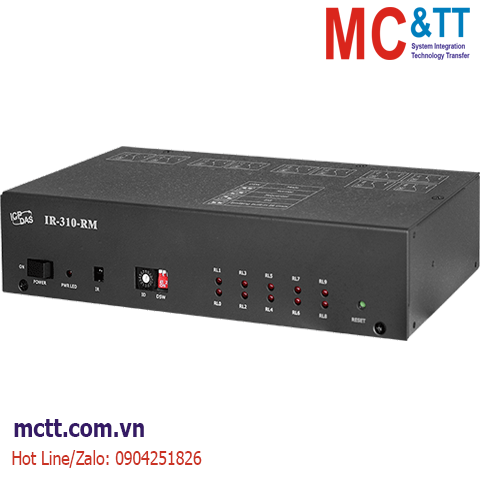

Bộ điều khiển IR RS-232/485 Modbus RTU 10 kênh đầu ra Relay ICP DAS IR-310-RM CR
Feature
- 10 channels high power relays: 10A x 4, 5A x 6
- Supports IR commands (custom:64, built-in:32) for relay control.
- NO & NC terminals for each channel
- Protection circuit for each channel
- Sequential relay control
- Supports maximum 5 sets of interlocked relay pairs (e.g. CW/CCW motor control)
- Power-on values and power failure memory
- RS-232 and RS-485 serial interface
- Supports Modbus/RTU protocol (Slave)
- Modbus Network IDs: 1 ~ 15 (HW); 1 ~ 247 (SW)
Introduction
IR-310-RM is a 10-channel high power relay module designed for the power control of various appliances. The relay module can switch up to 10 A loads. There are NO/NC switches and protection circuit for each channel. The relays can be controlled independently or sequentially by serial communication with Modbus RTU protocol, as well as by wireless IR remote control. There are also maximum 5 interlocked relay pairs for interlocked switching. The application field can be manual/automatic power switch, light scenario control and energy conservation etc.
Application
- e-Classroom service
- Lighting Scenario Control
- Home and Building Automation
Specifications
| CPU Module |
| NET ID |
Hardware: 1 ~ 15
Software: 1 ~ 247 |
| LED Indicators |
| Status |
1 x Power indication
10 x Relay output indicators |
| Infrared |
| IR Remote Commands |
64 IR commands (#0 ~ #63) corresponding to self-defined relay states.
32 IR commands (#192 ~ #223) corresponding to built-in relay states. |
| IR Remote Input |
1 x On-board IR receiver
1 x 3.5 mm audio jack (for CA-IR-001) |
| Relay Output |
| Channels |
10 |
| Type |
Form C relay SPDT |
| Contact Rating |
5A @220VAC for RL0, RL1 & RL6~RL9
10A @220VAC for RL2 ~ RL5
(Operating temperature: 25°C) |
| Operate Time |
10 ms for RL0,RL1 & RL6 ~ RL9,
15 ms for RL2 ~ RL5 |
| Release Time |
5 ms for RL0, RL1 & RL6 ~ RL9
10 ms for RL2 ~ RL5 |
| Electrical Endurance |
1 × 10^5 OPS |
| Mechanical Endurance |
1 × 10^7 OPS |
| COM Ports |
| Ports |
RS-232 (TxD, RxD, GND)
RS-485 (DATA+, DATA-) |
| Baud Rate |
9600, 19200, 38400, 57600, 115200 bps |
| Data Format |
Parity: None, Databits: 8, Stopbits: 1 |
| Protocol |
Modbus RTU Slave |
| Power |
| Consumption |
6.5W (max) |
| Mechanical |
| Dimensions (mm) |
220 x 113 x 48 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| IR-310-RM CR |
IR Controlled 10-channel High Power Relay Module (RoHS) |
