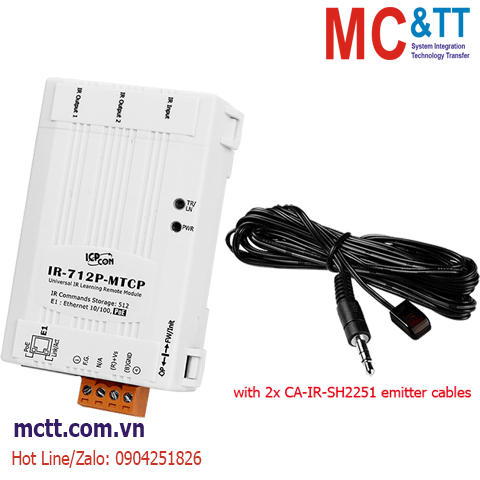

Module chuyển đổi hồng ngoại IR sang PoE Ethernet Modbus TCP ICP DAS IR-712P-MTCP CR

Chia sẻ:
Mã sản phẩm: IR-712P-MTCP
Thương hiệu: ICP DAS
Tình trạng:

Universal IR Learning Module (2x IR outputs, 512x IR cmds)

Liên hệ
Mô tả

Module chuyển đổi hồng ngoại IR sang PoE Ethernet Modbus TCP ICP DAS IR-712P-MTCP CR

Feature

  • 2 IR output channels.
  • 1 IR learning input
  • IR command capacity: 512
  • Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
  • Supports Ethernet interface.
  • Support PoE power supply  (IEEE 802.3af, Class 1)
  • Supports Modbus TCP/UDP protocol to emit IR commands.
  • Provides ASCII String Command (DCON over TCP/UDP) to emit IR signal.
  • Includes 2x CA-IR-SH2251 IR emitter cables.
    (Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)

Introduction

IR-712P-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712P-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP and DCON protocols provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712P-MTCP is well-suited for smart home and building automation.

Application

  • Home Entertainment Devices
  • Video Conferencing System
  • Surveillance System
  • e-Classroom service
  • Lighting Scenario Control
  • Home and Building Automation

Specifications

LED Indicators
Status 1 x TR/LN (IR Transmitting/Learning)
1 x PWR (Power)
Infrared
IR Learning Input 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz.
IR Output Channels 2 channels with 3.5 mm audio jack
IR Remote Commands Capacity: 512
Ethernet
Ports 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
PoE Yes
Protocol Modbus TCP/UDP server
Power
Consumption Stand By: 1.7W
Using 1 IR output: 3.4W
Using 2 IR Outputs: 5.8W (Max.)
Powered from PoE Yes, IEEE 802.3af, Class 1
Mechanical
Dimensions (mm) 52 x 27 x 85 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature 25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

IR-712P-MTCP     CR  Universal PoE IR Learning Module (2x IR outputs, 512x IR cmds) (Ethernet) (RoHS)
Includes 2x CA-IR-SH2251 emitter cables
