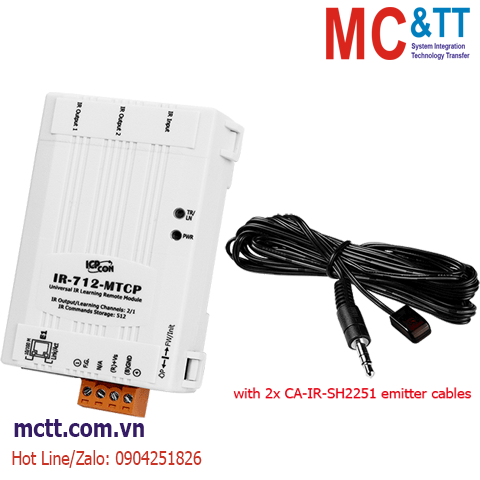

Module chuyển đổi hồng ngoại IR sang Ethernet Modbus TCP ICP DAS IR-712-MTCP CR

Module chuyển đổi hồng ngoại IR sang Ethernet Modbus TCP ICP DAS IR-712-MTCP CR

Feature

• 2 IR output channels.
• 1 IR learning input
• IR command capacity: 512
• Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
• Supports Ethernet interface.
• Supports Modbus TCP/UDP protocol to emit IR commands.
• Provides ASCII String Command (DCON over TCP/UDP) to emit IR signal.
• Includes 2x CA-IR-SH2251 IR emitter cables.
  (Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)

Introduction

IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP and DCON protocols provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation.

Application

• Home Entertainment Devices
• Video Conferencing System
• Surveillance System
• e-Classroom service
• Lighting Scenario Control
• Home and Building Automation

Specifications

Download

Datasheet

Documents

Ordering Information
