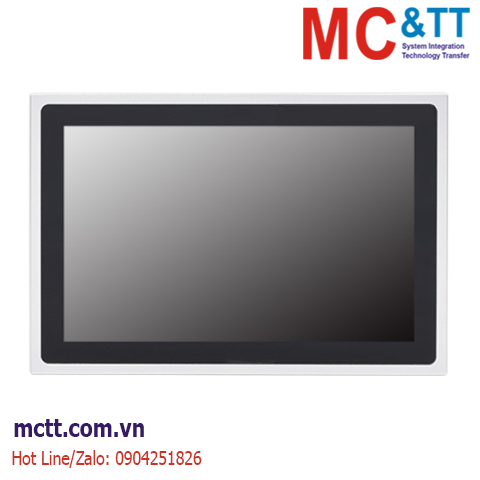

Máy tính công nghiệp màn hình cảm ứng 10.1 inch (2 LAN + 2 COM) TP-IPC IPPC-104V2-N97-10W
IPPC-104V2-N97-10W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
Tính năng
- Projected capacitive (default) or resistive (by reuqest touchscreen, also available for non-touch screen;
- Ultra-thin design, overall thickness is under 60mm;
- Narrow bezel design bring the more compact overall size;
- Aluminum alloy cooling backshell , sealed and fanless system design, dustproof, anti-vibration and anti-interference;
- Support a variety of interface customization
Thông số kỹ thuật
|
LCD Display |
Touchscreen |
|
Display Type |
10.1″ TFT LCD (LED backlight) |
Touchscreen Type |
Projected Capacitive |
Non-Touchscreen |
|
Resolution |
1280*800 |
Touchscreen Method |
Ten point |
– |
|
Luminance |
400 cd/m2 (Typ.) |
Surface |
6H |
6H |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR>=10) |
Durability |
– |
– |
|
Contrast Ratio |
800:1 (Typ.) ( Transmission ) |
Transparency |
85±3% |
>88% |
|
System |
|
CPU |
Model |
Intel® Alder Lake-N Series Processor N97 |
|
RAM |
SO-DIMM |
1* SO-DIMM Socket, support DDR4-3200 MHz, up to 16GB |
|
Storage |
M.2 |
1* M.2 M-Key 2280 Slot, PCIE X1/SATA, Support PCIE X1 NVMe/SATA SSD |
|
Supported OS |
Windows & Linux |
Windows 10/11 64bit, Linux |
|
I/O INTERFACE |
COM |
3* RS232 full Lines (COM1-3) ; 2* RS232/TTL 2 Lines (COM4-5) ; 1* RS232/TTL 2 Lines (COM6) |
|
Ethernet |
1* Intel i210-AT GbE + 1* Intel i226-V GbE |
|
USB |
4* USB3.0; 2 * USB2.0 |
|
Video |
1* HDMI, max 4096*2160@30Hz + 1* DP++, max 4096*2160@60Hz |
|
Audio |
1 * Line-Out + MIC, CTIA |
|
SIM |
1* Built-in SIM Card Slot connected to Mini-PCIe |
|
Power Supply |
Optional 24V or 12V/19V/24V PWR module with Terminal Block (2-Pin, 3.5mm/5.08mm) +12V DC; 1* DC Jack (5.5* 2.5mm) |
|
Other |
1* 8-bit GPIO header; (2-Pin, 2.00mm) |
|
Extended Capabilities |
Additional Internal Interface |
1, M.2 E-Key 2230, PCIE+USB2.0, support WiFi+ Bluetooth Module + 1, M.2 B-Key 2242/3052, USB3.0+ USB2.0, Support 5G/4G |
|
Environment |
Operating Temperature |
Non-Touch:-20~70°C; Capacitive:-20~70°C; Resistive:-10~50°C; (w/ 0.7m/s Airflow) |
|
Storage Temperature |
Non-Touch:-30 ~ 80°C; Capacitive:-20 ~ 70°C; Resistive:-20 ~ 50°C |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical Characteristics |
Dimensions |
259.6*177.6*50.5 mm |
|
Net Weight |
Around 2kg (The final weight is subject to actual ordering configuration) |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Alder Lake-N97 |
Alder Lake-N |
4 |
4 |
3.60 GHz |
- |
6 MB Intel® Smart Cache |
12W |
DDR4 |
Intel® HD Graphics |
Phụ kiện mua thêm
|
Optional Items |
Max Qty |
Description |
|
DC9-30V TO DC 12V PWR module |
1 |
Phoenix Terminal connector, Power supply voltage conversion module, connected by header |
|
Isolated 8-bit GPIO, 9-26V |
1 |
Phoenix Terminal connector, connected by jumper |
|
Isolated RS-232 |
6 |
DB9 or Phoenix Terminal connector, connected by header |
|
Isolated 8-bit GPIO, 9-24V |
1 |
Phoenix Terminal connector, connected by header |
|
4G/5G Module |
1 |
Connected by M.2 interface |
|
WiFi Module without AP mode |
1 |
Connected by M.2 interface |
