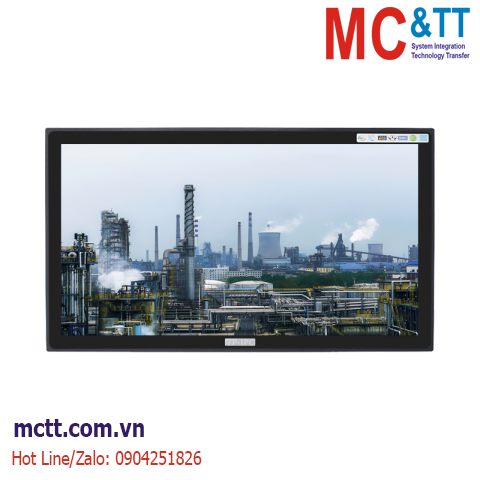

LCD Display |
Touchscreen |
|
Display Type |
21.5″ TFT LCD (LED backlight) |
Touchscreen Type |
Projected Capacitive |
Non-Touchscreen |
|
Resolution |
1920*1080 |
Touchscreen Method |
Ten point |
– |
|
Luminance |
250 cd/m2 (Typ.) |
Surface |
6H |
6H |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR>=10) |
Durability |
– |
– |
|
Contrast Ratio |
3000 : 1 (Typ.) ( Transmission ) |
Transparency |
85±3% |
>88% |
|
System |
|
CPU |
Model |
Intel® Core™ i7-1165G7 |
Intel® Core™ i5-1135G7 |
Intel® Core™ i3-1115G4 |
Intel® Celeron® 6305E |
|
Graphic |
Intel® Iris® Xe Graphics, Up to 96 EUs,1.3Ghz |
Intel® Iris® Xe Graphics, Up to 80 EUs,1.3Ghz |
Intel® UHD Graphics, up to 48 EUs, 1.25Ghz |
|
RAM |
SO-DIMM |
2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB |
|
Storage |
M.2 |
1* M.2 (NGFF) 2280 M-key Slot, support PCIex4 NVMe/ SATA3.0 SSD (PCIe x4 NVMe /SATA SSD sel by res, support SATA SSD by default. Intel® Core™ processor support Gen4 NVMe SSD, Intel® Celeron® processor support Gen3 NVMe SSD) |
|
Supported OS |
Windows & Linux |
Win 8, Win 10; Win 10 IoT, Ubuntu, Dibian, Kali, CentOS, etc. |
|
I/O INTERFACE |
COM |
3 * RS232 (COM1/2/3, Header, Full lanes); 2 * RS232/TTL (COM4/5, Header, 3 lanes) ; 1 * RS232/RS485/TTL (COM6, Header, 3 lanes) (COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode) |
|
Ethernet |
2 * Intel® GBE LAN Chip (10/100/1000 Mbps, RJ45) |
|
USB |
6* USB3.0; 4 * USB2.0 Internal Headers |
|
Video |
2* HDMI(TYPE-A), max resolution up to 4096*2160@30Hz |
|
Audio |
1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header |
|
SIM |
1* Built-in nano-SIM Card Slot connected to M.2 B-key slot |
|
Power Supply |
12V DC; 1* DC Threaded Jack (5.5* 2.5mm) |
|
Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm) |
|
Other |
1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V; |
|
Extended Capabilities |
Additional Internal Interface |
1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support WiFi+BT, 2230)
1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052) |
|
Environment |
Operating Temperature |
Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow) |
|
Storage Temperature |
Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical Characteristics |
Dimensions |
520*316*55.8 mm |
|
Net Weight |
Around 6.3kg (The final weight is subject to actual ordering configuration) |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
