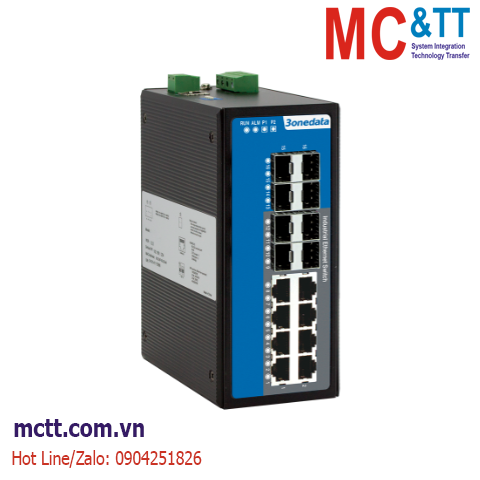

Switch công nghiệp quản lý 8 cổng Gigabit Ethernet + 8 cổng Gigabit SFP 3Onedata IES7116G-8GS

Chia sẻ:
Mã sản phẩm: IES7116G-8GS
Thương hiệu: 3onedata
Tình trạng:

16-port Gigabit Layer 2 Managed Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp quản lý 8 cổng Gigabit Ethernet + 8 cổng Gigabit SFP 3Onedata IES7116G-8GS

Chúng tôi – MC&TT đại diện phân phối sản phẩm hãng 3Onedata tại Việt Nam, xin thông báo:

IES7116G-8GS đã dừng sản xuất và được nâng cấp thay thế bằng IES6316-8GT8GS-2P48

IES7116G-8GS is 16-port full Gigabit layer 2 managed industrial Ethernet switches. This product provides Gigabit copper port and Gigabit SFP slot. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP/MSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. Design of DIP switch can achieve the device rebooting and restore factory defaults. When power supply or port occurs link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Tính năng

  • Support 8 Gigabit fiber ports (SFP slots), 8 Gigabit copper ports
  • Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
  • Support dual power supply input, input voltage: 12~48VDC
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard &Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

Management

SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics

Security

Classification of User Permissions, Anti-attack Control, ACL, 802.1X Authentication, Port Alarm, Power Supply Alarm, E-mail Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration

Switch Function

802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

Static Multicast, GMRP, IGMP-Snooping

Redundancy Protocol

SW-Ring, STP/RSTP/MSTP

Fault Diagnosis Ping, Traceroute, Port Loopback
Time Management

SNTP

Interface

Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

SFP slot: 1000Base-SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC

LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch Property

Transmission mode: store and forward

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 56G

Switch time delay: < 5μs

Power Requirement

12~48VDC, 4-pin 7.62mm pitch terminal blocks

dual power supply redundancy, reverse polarity protection, nonpolarity

Power Consumption No-load: 10.99W@24VDC

Full-load: 20.69W@24VDC

Environmental Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~75℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Weight: 1.1kg

Dimension (W x H x D): 70mm×160mm×130mm

Industrial Standard

IEC 61000-4-2 (ESD) ,Level 4

Air discharge: ±15kV

Contact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 4

Power supply: ±4kV

Ethernet interface: ±2kV

Relay: ±4kV

IEC 61000-4-5 (Surge), Level 4

Power supply: common mode ±4kV, differential mode ±2kV

Relay: common mode ±4kV, differential mode ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models Gigabit SFP Slot Gigabit Copper Port Power Supply Range
IES7116G-8GS 8 8  12~48VDC dual power supply
