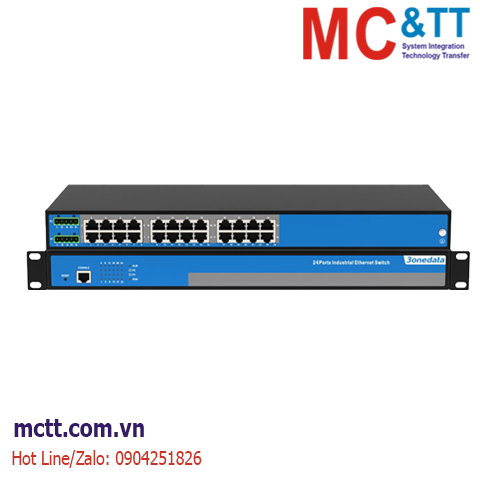

| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP |
| Management |
SNMP v1/v2c/v3, Telnet/SSH configuration, Port Setting, Port Rate Limit, Port Mirroring, Port Statistics, Static MAC, LLDP, DHCP Server, QoS, Modbus TCP, Configuration File Management, Software Upgrade, log Information, Syslog Server |
| Security |
User configuration, port loop detection, 802.1X authentication/Radius server, port/power alarm, utilization alarm and mail alarm |
| Switch Function |
802.1Q VLAN, link aggregation, flow control, storm control |
| Unicast / Multicast |
Multicast filtering, IGMP Snooping, dynamic multicast, MAC information |
| Redundancy Protocol |
Ring, STP/RSTP |
| Troubleshooting |
Ping |
| Time Management |
SNTP Client, Time Zone Configuration |
| Interface |
100M copper port: 10/100Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, SC connector
CONSOLE port: CLI command line management port(RS-232), RJ45
Relay: support 2 relay alarm outputs, and adopt 2 5-pin 5.08mm pitch terminal blocks, relay occupies the right 2 pins, the current carrying capacity is 1A@30VDC or 0.3A@125VAC |
| LED Indicator |
Power indicator, running indicator, alarm indicator, interface indicator |
| Switch Property |
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 4Mbit
Backplane bandwidth: 12.8Gbps
Switch delay: <10μs |
| Power Supply |
IES5100-24T-2LV, IES5100-22T2F-2LV, IES5100-20T4F-2LV, IES5100-24F-2LV
Input voltage: 24VDC/48VDC (18~72VDC)
Power supply quantity: dual power supply redundancy
Connection method: 2 5-pin 5.08mm pitch terminal blocks (includes 3-pin power supply on the left side)
Connection protection: non-polarity
IES5100-24T-2HV, IES5100-22T2F-2HV, IES5100-20T4F-2HV, IES5100-24F-2HV
Input voltage: 110VAC/DC, 220VAC/DC (85~264VAC/DC)
Power supply quantity: dual power supply redundancy
Connection method: 2 5-pin 5.08mm pitch terminal blocks (includes 3-pin power supply on the left side) |
| Power Consumption |
IES5100-24T-2LV
No-load: 4.5W@48VDC
Full-load: 10.8W@48VDC
IES5100-24T-2HV
No-load: 7.3W@220VAC
Full-load: 11.7W@220VAC
IES5100-22T2F-2LV
No-load: 5.3W@48VDC
Full-load: 7.1W@48VDC
IES5100-22T2F-2HV
No-load: 8.4W@220VAC
Full-load: 11.9W@220VAC
IES5100-20T4F-2LV
No-load: 6.6W@48VDC
Full-loaded: 8.6W@48VDC
IES5100-20T4F-2HV
No-load: 10.0W@220VAC
Full-load: 12.2W@220VAC
IES5100-24F-2LV
No-load: 28.4W@48VDC
Full-load: 29.7W@48VDC
IES5100-24F-2HV
No-load: 20.7W@220VAC
Full-load: 22W@220VAC |
| Environmental Limit |
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 440mm×44mm×207mm (lugs are not included)
Weight:
IES5100-24T-2LV is 2.31kg
IES5100-24T-2HV is 2.62kg
IES5100-24F-2LV is 2.42kg
IES5100-24F-2HV is 2,659kg |
| Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Contact discharge: ±8kV
Air discharge: ±15kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Copper port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±4kV
Copper port: differential mode±2kV, common mode±4kV
Relay: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-31
Vibration: IEC 60068-2-6 |
| Certification |
CE, FCC, RoHS |
