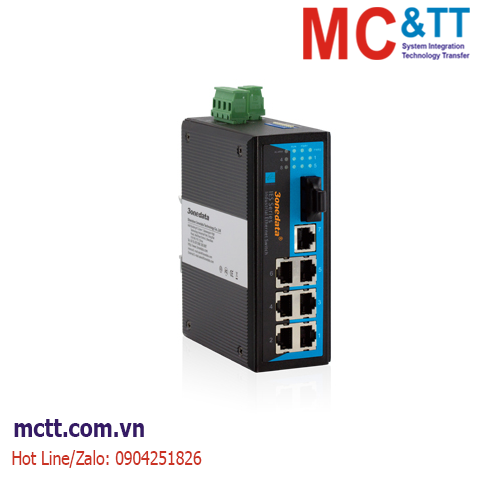

Switch Công Nghiệp 7 cổng Ethernet + 1 cổng quang 3Onedata IES308-1F

Chia sẻ:
Mã sản phẩm: IES308-1F
Thương hiệu: 3onedata
Tình trạng:

8-port 10/100Base-T(X) Industrial Etherent Switch

Liên hệ
Mô tả

Chúng tôi – MC&TT đại diện phân phối sản phẩm hãng 3Onedata tại Việt Nam, xin thông báo:

IES308-1F đã dừng sản xuất và được nâng cấp thay thế bằng IES318-1F

Switch công nghiệp IES308-1F là thiết bị chuyển mạch công nghiệp với 7 cổng 10/100BaseT(X) và 1 cổng quang 100BaseF(X), hỗ trợ IEEE802.3/802.3u/802.3x, cung cấp giải pháp cho hệ thống mạng công nghiệp với chi phí hiệu quả, ổn định, ít tốn kém. Switch công nghiệp Ethernet IES308-1F(S) được thiết kế để có thể làm việc liên tục trong môi trường công nhiệp khắc nghiệt, những nơi độc hại nguy hiểm (nhà máy sản xuất gang thép, nhà máy xi măng, nhà máy hóa chất, ga tầu điện ngầm, đường cao tốc, nút giao thông vv..) Khoảng nhiệt độ làm việc từ -40°C lên đến 75ºC.

Các sản phẩm của model này phải trải qua 100% các bài test để đảm bảo rằng chúng đáp ứng các nhu cầu đặc biệt của tự động hóa công nghiệp. Switch công nghiêp IES308-1F có thể lắp đặt rất dễ dàng trên một DIN-Rail hoặc trong hộp phối quang

Tính năng

  • IEEE802.3/802.3u/802.3x/802.3d,store and forward
  • Plug-and-play, 10/100M, F/H duplex, MDI/MDI-X auto negotiation
  • Broadcast storm protection
  • Relay output warning for power failure and port break alarm
  • Redundant 24VDC power input(12V~48VDC)
  • -40~75°C working temperature
  • Designed for industrial applications, IP40 protection grade, rugged high-strength metal case

Thông số kỹ thuật

Technology
Standard: IEEE802.3、IEEE802.3u、IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 2.0G
MAC address table: 2K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 850nm, 1310nm, 1550nm
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode:  850nm , 2Km ; 1310nm, 5Km
Single-mode:   1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~8)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC (12~48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support overload current protection
Relay
Current load capacity: 1A@30VDC
Working environment
Working temperature: -40~75℃
Storage temperature: -40~85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounted
Weight: 800g
Size (W×H×D): 136 mm×52mm×105mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS

Download

Datasheet

Quick Guide

Thông tin đặt hàng

IES308-1F(M):
7-port 10/100Base-T(X) + 1-port 100Base-FX Multi-mode SC/ST/FC , 12-48VDC
IES308-1F(S):
7-port 10/100Base-T(X) + 1-port 100Base-FX Single-mode SC/ST/FC , 12-48VDC
IES308-1F(SS):
7-port 10/100Base-T(X) + 1-port 100Base-FX Single-mode, single fiber SC/ST/FC , 12-48VDC
