Switch công nghiệp 16 cổng Ethernet 3Onedata IES2100SL-16T-2LV

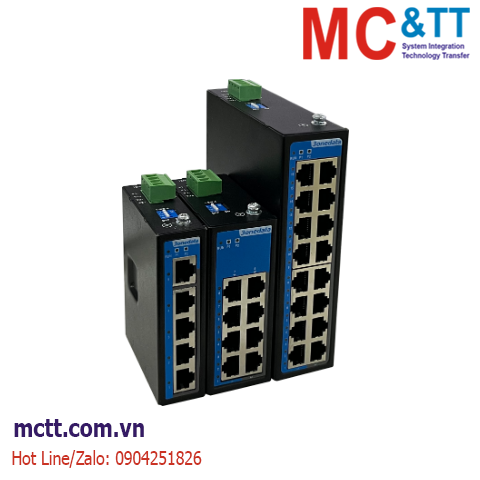

IES2100SL series are 5/8/16-port 100M unmanaged industrial Ethernet switches. This series provides 3 products and support 100M copper ports. They adopt DIN-Rail mounting to meet the requirements of different application scenes.

DIP switch can implement functions such as device storm suppression, flow control, VLAN, and loop detection. The input power supply is two independent power supply circuits that can ensure the device's normal operation when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature, and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Tính năng

  • Support 5, 8 or 16 100M copper ports (optional)
  • Support storm suppression, flow control, one-key VLAN (5T, 8T), loop detection (5T, 8T) and other functions
  • Support up to 2048 bytes of Jumbo frame
  • Support dual power redundancy, input voltage 12/24/48 VDC (9~60VDC)
  • Support -40~75℃ wide operating temperature range
  • Support IP40 protection grade

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3x for Flow Control

IEEE 802.1Q for VLAN

Interface

100M copper port: 10/100Base-T(X) self-adaptive RJ45, full/half duplex mode self-adaption, MDI/MDI-X autotunning

DIP switch:

  • 5T/8T: 1-loop detection, 2-storm suppression, 3-VLAN, 4-flow control
  • 16T: 1-flow control, 2-storm suppression, 3/4-NC

Indicator

Power indicator, running indicator, interface indicator

Switch Property

Transmission mode: store and forward

MAC address: 2K (5T/8T), 8K (16T)

Backplane bandwidth: 1G (5T), 1.6G (8T) and 3.2G (16T)

Switch time delay: <10μs

Power Supply

12/24/48 VDC (9~60VDC), dual power supply redundancy, using 4-pin 5.08mm pitch terminal blocks, support anti-reverse connection

Power Consumption

Available Models

No-load

Full-load

IES2100SL-5T-2LV

0.2W@12VDC

0.8W@12VDC

IES2100SL-8T-2LV

0.4W@12VDC

3.0W@12VDC

IES2100SL-16T-2LV

0.7W@48VDC

2.9W@48VDC

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (width× height× depth): 28mm×103mm×78mm(5T),
40.6mm×103mm×78mm (8T),
40.6mm×150mm×120mm (16T)

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

Contact discharge: ±6kV

Air discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

Power supply: ±2kV

Copper port: ±2kV

IEC 61000-4-5 (Surge), Level 3

Power supply: differential mode±1kV, common mode±2kV

Copper port: ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS

Warranty

3 years

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models

100M Copper Port

Power Supply

IES2100SL-5T-2LV

5

12/24/48 VDC

Dual power supply redundancy

IES2100SL-8T-2LV

8

IES2100SL-16T-2LV

16
