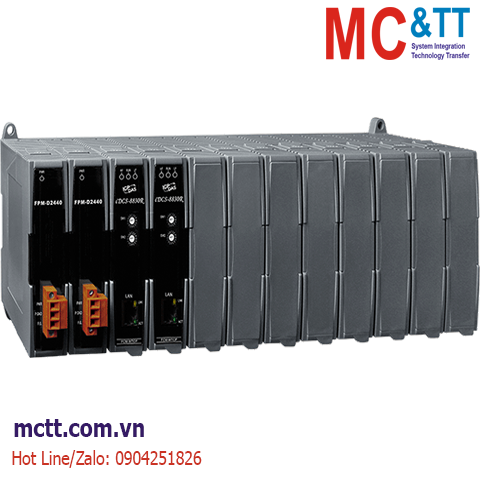

Module Ethernet Modbus TCP điều khiển dự phòng phân tán 8 khe cắm module I/O ICP DAS iDCS-8830 CR

Chia sẻ:
Mã sản phẩm: iDCS-8830
Thương hiệu: ICP DAS
Tình trạng:

8-slot Redundant Distributed Modular I/O System with Ethernet

Liên hệ
Mô tả

Module Ethernet Modbus TCP điều khiển dự phòng phân tán 8 khe cắm module I/O ICP DAS iDCS-8830 CR

Features

  • Auto Configuration
  • Redundancy
  • Hot Swap
  • Modbus/TCP Comm. Interface
  • 8 I/O Slot

Introduction

The iDCS-8000 is a modular remote I/O system. It provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible, so that the I/O modules can be combined to suit many applications including the most types of signals, digital, analog, counter and HART. The station of an iDCS-8000 system consists of power module, communication module, I/O modules and termination board. The power module provides the isolated power to iDCS-8000 system. The communication module is the interface to the iDCS-8000 I/O modules. The iDCS-8000 I/O modules sense or control the device in the field. Termination boards are used to connect between signals to/from the field and I/O modules. All of these modules can be configured into single or redundant operation.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis



Specifications

EMS Protection
EFT (IEC 61000-4-4) Yes
ESD (IEC 61000-4-2) Yes
I/O Expansion
Slots 8
Power
Redundant Power Inputs Yes
Mechanical
Dimensions (mm) 132 x 374 x 100
Environment
Operating Temperature -25 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iDCS-8830     CR  8-slot Redundant Distributed Modular I/O System with Ethernet (RoHS)
Includes 2x FPM-D2440 and 2x FCM-MTCP
