Bo mạch kết nối 8 kênh đầu vào tương tự HART ICP DAS DN-AIH-08 CR
Features
Introduction

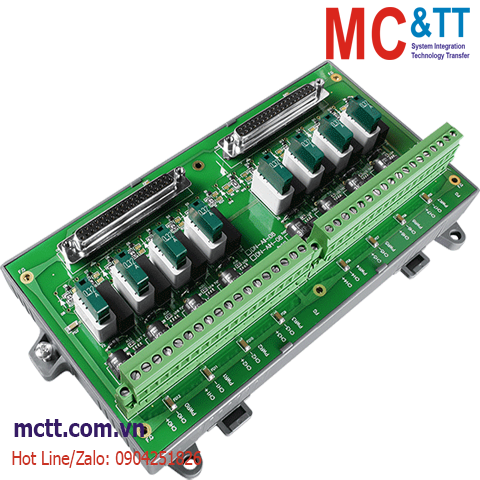

The DN-AIH-08 is a termination board for HART analog input module. This termination board not only measures analog signal but also provides isolated power source for the field devices. In other words, this board supports both active and passive loop. Besides, thie board also has short circuit protection for the isolated power, the loop current will be limited when circuit is shorted or the current is too large. Moreover, the removable fuse can protect loop device when high inrush current occur, these fuses also have physical indicator when broken.
PIN Assignments
Wiring
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
Specifications
| Analog Input |
| Channels |
8 (Support Active and Passive Loop Wiring Connection) |
| Mechanical |
| Dimensions (mm) |
135 x 214.6 x 25.5 |
| Installation |
DIN-Rail & wall mounting |
| Environment |
| Operating Temperature |
-25 ~ 75 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DN-AIH-08 CR |
Termination board for HART analog input with EMS protection and over-current protected and isolated passive loop power (RoHS) |
