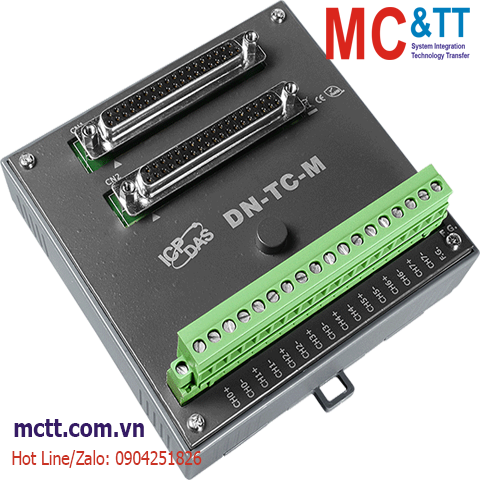

Bo mạch kết nối 8 kênh đầu vào Thermocouple ICP DAS DN-TC-M CR

Chia sẻ:
Mã sản phẩm: DN-TC-M
Thương hiệu: ICP DAS
Tình trạng:

Termination board for thermocouple module

Liên hệ
Mô tả

Bo mạch kết nối 8 kênh đầu vào Thermocouple ICP DAS DN-TC-M CR

Features

Introduction

The DN-TC-M is a termination board for TC input modules. This termination board is also built-in CJC to measure temperature more accurate. The size of this termination board is also small and same as other mini termination boards for users’ installation.

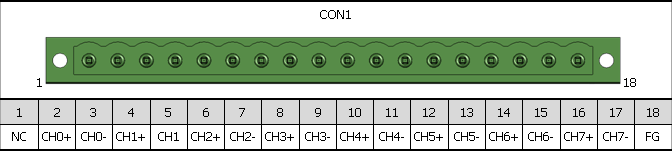

PIN Assignments

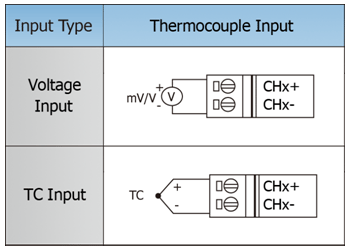

Wiring

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

Analog Input
Channels 8
Type Thermocouple
Mechanical
Dimensions (mm) 112 x 117 x 29
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-TC-M     CR  Termination board for thermocouple module (RoHS)
