Bo mạch kết nối 16 kênh vào/ra tương tự AI/AO ICP DAS DN-AIO-M CR

Chia sẻ:
Mã sản phẩm: DN-AIO-M
Thương hiệu: ICP DAS
Tình trạng:

Universal termination board for analog I/O

Liên hệ
Mô tả

Bo mạch kết nối 16 kênh vào/ra tương tự AI/AO ICP DAS DN-AIO-M CR

Features

Introduction

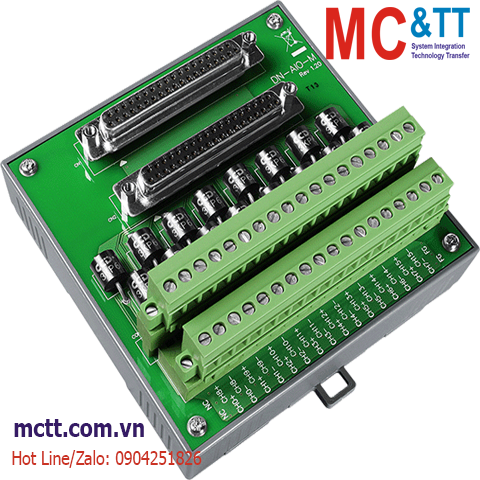

The DN-AIO-M is a termination board for analog input and output modules. It is a general termination board for most kind of analog modules. The size of this termination board is also small and same as other mini termination boards for users' installation.

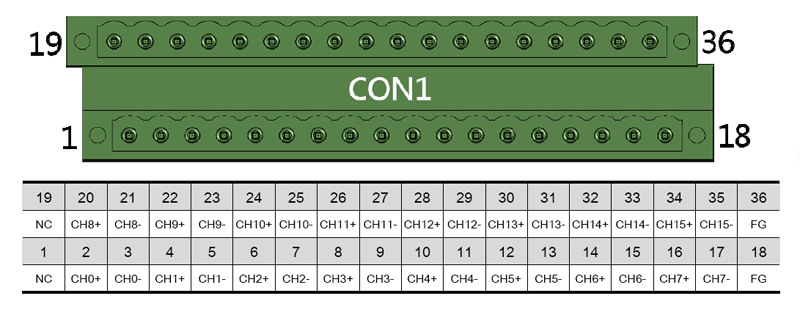

PIN Assignments


 Wiring

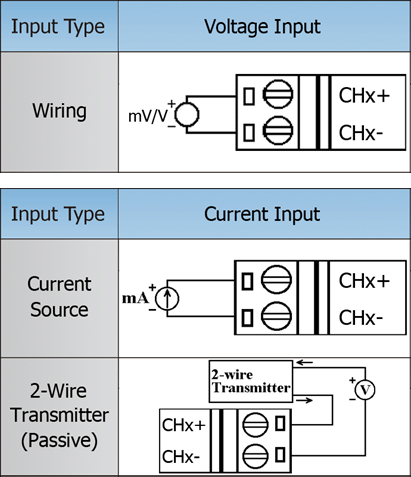

Voltage/Current Input

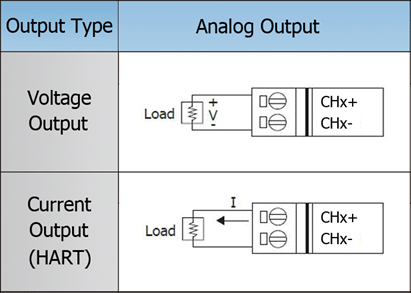

 Voltage/Current Output

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

Digital Output
Channels 16
Mechanical
Dimensions (mm) 112 x 117 x 29
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-AIO-M     CR  Universal termination board for analog I/O (RoHS)
