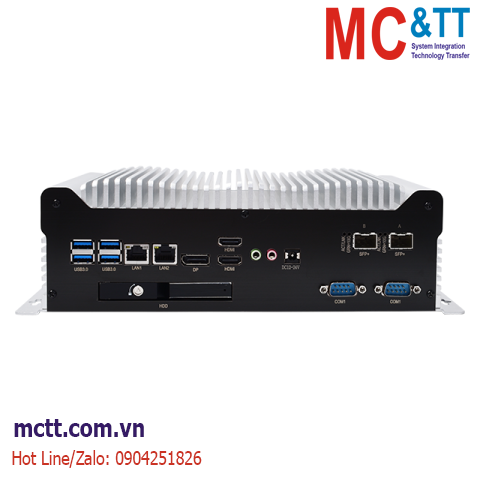

Máy tính nhúng công nghiệp không quạt CPU Intel® 10 /11th LGA1200 ỗ trợ khe cắm PCI/PCIe TP-IPC IBOX-603-2L4C-1P

Model

IBOX-603-2L4C-1P

Supported OS

Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT

Chipset

Model

Intel® H470 Chipset

Intel® Q470E Chipset

vPRO Tech

Non-supported

Non-supported

Supported

CPU

Socket

Intel® Desktop Processors Socket LGA1200

Series

10th/11th Gen. Intel® Core™ i9 / i7/ i5 /i3

10th Gen. Intel® Core™ i3

10th/11th Gen. Intel® Core™ i9 / i7/ i5

TDP

Up to 65W

Up to 65W

Up to 65W

Graphic

Intel® UHD Graphics 630 for 10th Gen. processor;

Intel® UHD Graphics 750 for 11th Gen. processor, 32Eus

RAM

SO-DIMM

2* Dual-CH DDR4 2933/ 2666 MHz SO-DIMM Socket, Capacity up to 64GB;

(Core® i9/ i7 CPUs support DDR4 up to 2933 MHz; Core® i5/ i3 CPUs support DDR4 up to 2666 MHz)

Storage Device

SATA

1* SATA3.0 connector (6Gb/s)

M.2

1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD

I/O Interface

COM

4* COM headers (COM1/COM2, support RS232/422/485; COM3/COM4,support RS232)

Ethernet

1* Intel i225LM 2.5GbE, 1* Intel i219LM GbE LAN

1* Intel i225LM 2.5GbE, 1* Intel i219V GbE

USB

4 * USB3.2 (Gen.1, 5Gb/s) ; 1* 9-Pin USB 2.0 header for 2* USB 2.0 expansion ports (480Mb/s)

4 * USB3.2 (Gen.2, 10Gb/s) ; 1* 19-Pin USB 3.2 (Gen.1) header for 2* USB

3.2 (Gen.1, 5Gb/s); 2* 9-Pin USB 2.0 header for 4* USB 2.0 expansion ports (480Mb/s)

Video

2 * HDMI 1.4 (Max Resolution: 4096×2160 @60Hz); 1* DP (Max Resolution: 4096×2304 @60Hz); Support Triple Displays

Audio

1* Mic-in, 1* Line-out; With 5.1 channels HD Audio Codec Realtek ALC662; 1* Audio Header

SIM

1* Internal SIM card slot connected to M.2 B-key slot

Power Supply

12V-28V DC; 1* DC Jack (5.5* 2.5mm)

Other

1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;

Extended Capabilities

Additional Internal Interface

1* Half Size PCIex16 slot (Suggest the PCIe card less than 25W Power) 1* M.2 2230 E-key slot (PCIe+USB2.0, support CNVi)

1* M.2 3042/3052 B-key slot (USB3.0/PCIe x1)

Environment

Operating Temperature

-10 ~ 60 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 10%~95%, Non-Condensing

Physical Characteristics

Dimensions

290.3* 87.58* 186 mm (W* H* D)

Net Weight

3.9 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I3-10100T

Comet Lake

4

8

3.80 GHz

3.00 GHz

6 MB Intel® Smart Cache

35 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I3-10100

Comet Lake

4

8

4.30 GHz

3.60 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-10500T

Comet Lake

6

12

3.80 GHz

2.30 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-10500

Comet Lake

6

12

4.50 GHz

3.10 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-11500T

Rocket Lake

6

12

3.90 GHz

1.50 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® UHD Graphics 750, 32Eus

Intel® Core™ I5-11500

Rocket Lake

6

12

4.60 GHz

2.70 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 750, 32Eus

Intel® Core™ I7-10700T

Comet Lake

8

16

4.50 GHz

2.00 GHz

16 MB Intel® Smart Cache

35 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-10700

Comet Lake

8

16

4.80 GHz

2.90 GHz

16 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-11700T

Rocket Lake

8

16

4.60 GHz

1.40 GHz

16 MB Intel® Smart Cache

35 W

DDR4

Intel® UHD Graphics 750, 32Eus

Intel® Core™ I7-11700

Rocket Lake

8

16

4.90 GHz

2.50 GHz

16 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 750, 32Eus

Optional Items

Max Qty

Description

Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-422

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Non-Isolated RS-485

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO, 0-5V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO with 7-in & 8-out, 12-24V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface, M.2 interface or internal USB interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

2

Connected by Mini-PCIe or M.2 interface

Dual/Quad channel CAN-Bus Module

1

Connected by PCIe Interface

Dual GbE PoE LAN Module

1

Connected by Mini-PCIe Interface

Quad GbE PoE LAN Module

2

Connected by PCIe Interface
