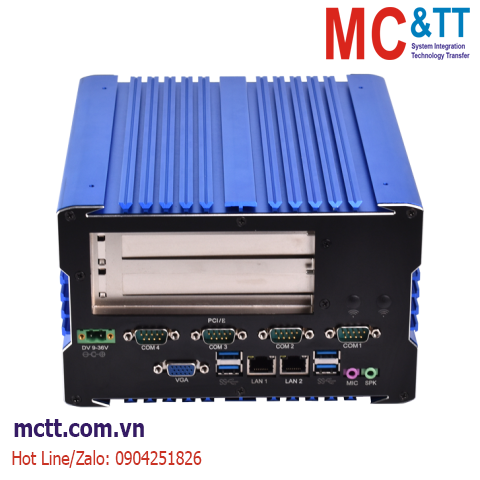

Máy tính nhúng công nghiệp (2 LAN + 6 COM) PCI/PCIe slot MCTT MBOX-2L6C-2P

CPU

CPU Model

6th~8th Intel® Core™ processor

11th Intel® Core™ processor

Graphic

Intel® HD Graphics/ Intel® UHD Graphics

Intel® Iris® Xe Graphics

TDP

Up to 15W

Up to 28W

RAM

Type & Qty

2* non-ECC SO-DIMM Socket

2* non-ECC SO-DIMM Socket

Frequency

DDR4-2133/2400 MHz, up to 32GB

DDR4-3200 MHz, up to 64GB

Storage

SATA

1* 2.5" SATA3.0 Bay on board (6Gb/s)

mSATA

1* mSATA3.0 slot on board (6Gb/s)

Supported OS

Win 7, Win 8, Win 10, Win11, Linux (UbuntuKali, CentOS, etc.); WES 7; Win 10 IoT

I/O Interface

COM

4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper);

2* DB9 RS232 COM port (COM5-6)

Ethernet

2* Intel® GbE LAN (10/100/1000 Mbps, RJ45)

2* 2.5 GbE LAN, RJ45

USB

4* USB3.0; 2* USB2.0

2* USB3.0; 4* USB2.0

Video

1* HDMI, Support 4096x2304@24Hz;

1* VGA, Support 1920x1200@60Hz;

1* HDMI, 4096x2304@60Hz;

1* VGA, 1920x1200@60Hz;

Audio

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* MIC, 1* SPK; With 7.1 channels HD Audio Codec Realtek ALC897

SIM

1* External SIM card slot connected to Mini-PCIe

Power Supply

9-36VDC with Terminal Block (2-Pin, 5.08mm)

Other

1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range;

1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator

1* Auto-On Switch

Expansion

1* Full Size Mini-PCIe (PCIe+USB2.0) with SIM card slot

1* PCIe3.0 x4 + 1* PCI (default)

Or 1* PCIe3.0 x4 + 1*PCIe3.0 x1;

Or 2* PCI

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Dimensions

192* 118.2* 215.6 mm (W* H* D)

Net Weight

3 KG

CPU

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Memory Types

Integrated Graphics

Intel® Core™ I5-6360U

2

4

3.10 GHz

2.00 GHz

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I7-6650U

2

4

3.40 GHz

2.20 GHz

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I5-7200U

2

4

3.10 GHz

2.50 GHz

DDR4

Intel® HD Graphics 620

Intel® Core™ I7-7500U

2

4

3.90 GHz

2.80 GHz

DDR4

Intel® HD Graphics 620

Intel® Core™ I3-8145U

2

4

3.90 GHz

2.10 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-8265U

4

8

3.90 GHz

1.60 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I7-8565U

4

8

4.60 GHz

1.80 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-1135G7

4

8

4.20 GHz

2.40 GHz

DDR4

Intel®Iris Xe Graphics; 80Eus

Intel® Core™ I7-1165G7

4

8

4.70 GHz

2.80 GHz

DDR4

Intel®Iris Xe Graphics; 96Eus

Part no.

Description

MBOX-2L6C-2P-6TH-I5

Fanless Embedded Industrial Computer with Intel® I5-6360U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-6TH-I7

Fanless Embedded Industrial Computer with Intel® I7-6650U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-7TH-I5

Fanless Embedded Industrial Computer with Intel® I5-7200U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-7TH-I7

Fanless Embedded Industrial Computer with Intel® I7-7500U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-8TH-I3

Fanless Embedded Industrial Computer with Intel® I3-8145U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-8TH-I5

Fanless Embedded Industrial Computer with Intel® I5-8265U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-8TH-I7

Fanless Embedded Industrial Computer with Intel® I7-8565U, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-11TH-I3

Fanless Embedded Industrial Computer with Intel® I3-1115G4, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-11TH-I5

Fanless Embedded Industrial Computer with Intel® I5-1135G7, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter

MBOX-2L6C-2P-11TH-I7

Fanless Embedded Industrial Computer with Intel® I7-1195G7, 2 GLAN, 6 USB, 6 COM, VGA + HDMI, Audio, 2 PCI/PCIe Slots and power adapter
