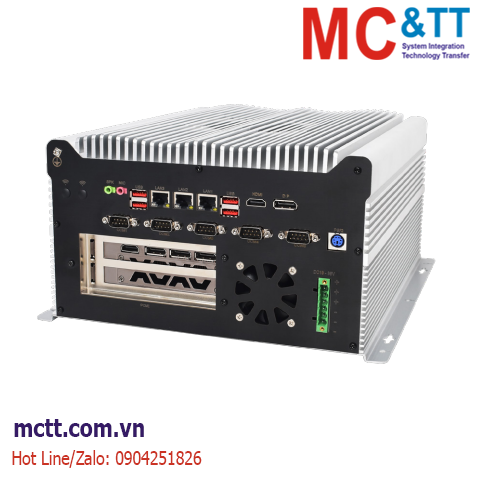

Model |
IBOX-602-GT-PRO |
|
Supported OS |
Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT |
|
Chipset |
Intel® H770 Chipset, TDP 6W |
|
CPU |
Socket |
Intel® Desktop Processors Socket LGA1700 |
|
Series |
Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 35-219W) |
Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W) |
|
Graphic |
Intel® UHD Graphics 730, 24 Execution Units |
Intel® UHD Graphics 770, 32 Execution Units |
|
RAM |
Type&Qty |
2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 128GB |
|
Storage Device |
SATA |
1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s);
4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1) |
|
mSATA |
1* mSATA3.0 slot on board (6Gb/s) |
|
M.2 |
1* M.2 2280 M-key slot (NGFF3) , support PCIex4 Gen.3 NVMe SSD (From CPU);
1* M.2 2280 M-key slot (NGFF1) , support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4) |
|
I/O Interface |
COM |
4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5);
1* RS232 header (COM6) |
|
Ethernet |
2* Intel® i210AT + 1* Intel® i219LM GbE LAN, RJ45 connector |
|
USB |
4* USB3.2 Gen 2×1 (10Gb/s);
4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard); |
|
Video |
1* DP, support 7680×4320@60Hz;
1* HDMI, support 4096×2160@24Hz; |
|
Audio |
1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897 |
|
SIM |
2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot) |
|
Power Supply |
19-36 VDC; 1* Terminal Block (4-Pin, 5.08mm) |
|
Other |
1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range;
1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator;
1* Auto-On Jumper; 1* TPM header (2*6-pin) |
|
Extended
Capabilities |
Additional
Internal Interface |
1* PCIe4.0 x16 or 2* PCIe4.0 x8;
1* M.2 3042/3052 B-key Slot with SIM card slot1 (USB3.0, USB signal is colay with USB1 on motherboard);
1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal is colay with USB2 on motherboard);
1* Full Size Mini-PCIe Slot with SIM card slot2 (PCIe+USB2.0, on daughterboard, the PCIe signal is colay with one LAN on daughterboard); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT) |
|
Environment |
Operating Temp. |
-10 ~ 60 °C |
|
Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
290.3* 152.6* 324 mm (W* H* D) |
|
Net Weight |
4.55 KG (The weight does not include graphics card, the final weight is subject to the actual configuration) |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
