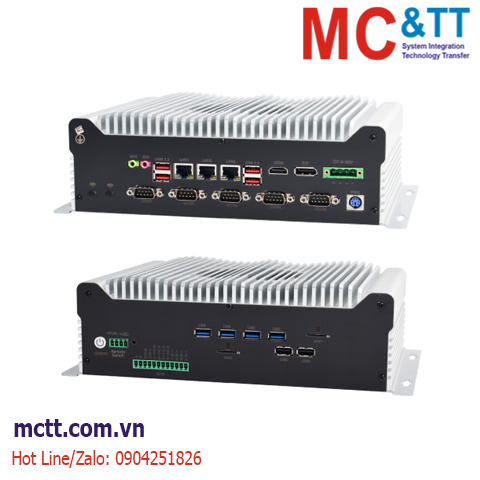

Máy tính công nghiệp không quạt Intel Core™ i9/ i7/ i5 /i3 Gen 12th/13th/14th (3 Lan + 5 COM) MCTT MBOX-602-GT

CPU

Socket

Intel® Desktop Processors Socket LGA1700

Series

Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)

Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)

Graphic

Intel® UHD Graphics 730, 24 Execution Units

Intel® UHD Graphics 770, 32 Execution Units

Chipset

Intel® H770 Chipset, TDP 6W

RAM

2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot

Storage

SATA

1* 2.5" SATA3.0 Bay on daughterboard (6Gb/s);

4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)

mSATA

1* mSATA3.0 slot on board (6Gb/s)

M.2

1* M.2 2280 M-key slot (NGFF3), support PCIex4 Gen.3 NVMe SSD (From CPU);

1* M.2 2280 M-key slot (NGFF1), support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)

Supported OS

Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT

I/O Interface

COM

4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper);

1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)

Ethernet

2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector

USB

4* USB3.2 Gen 2x1 (10Gb/s);

4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard);

2* USB2.0, 1* Internal USB2.0 (480Mb/s, on daughterboard)

Video

1* HDMI, Support 4096x2304 @24Hz

1* DP, Support 4096*2160 @60Hz

Audio

1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897

SIM

2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard;

(Available with one more internal SIM card slot when using a LTE module with SIM card slot)

Power Supply

9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)

Other

1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range;

1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator;

1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)

Expansion

1* M.2 3042/3052 B-key Slot with SIM card slot (USB3.0, USB signal is colay with USB1 on motherboard);

1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal iss colay with USB2 on motherboard);

1* Full Size Mini-PCIe Slot with SIM card slot (PCIe+USB2.0, on daughterboard);

1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Dimensions

290.35* 87.58* 186 mm (W* H* D)

Net Weight

3.9 KG

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core™ I3-12100T

Alder Lake

4

8

4.10 GHz

2.20 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-12500T

Alder Lake

6

12

4.40 GHz

2.00 GHz

18 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-12700T

Alder Lake

12

20

4.70 GHz

1.40 GHz

25 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-12900T

Alder Lake

16

24

4.90 GHz

1.40 GHz

30 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-12100

Alder Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-12500

Alder Lake

6

12

4.60 GHz

3.00 GHz

18 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-13100T

Raptor Lake

4

8

4.10 GHz

2.20 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-13500T

Raptor Lake

14

20

4.40 GHz

2.00 GHz

24 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-13700T

Raptor Lake

16

24

4.70 GHz

1.40 GHz

30 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-13900T

Raptor Lake

24

32

4.90 GHz

1.40 GHz

36 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-13100

Raptor Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I3-14100T

Raptor Lake

4

8

4.40 GHz

2.70 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-14500T

Raptor Lake

14

20

4.80 GHz

1.70 GHz

24 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-14700T

Raptor Lake

20

28

5.20 GHz

1.30 GHz

33 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-14900T

Raptor Lake

24

32

5.50 GHz

1.10 GHz

36 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-14100

Raptor Lake

4

8

4.70 GHz

3.50 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Part no.

Description

MBOX-602-GT-12TH-I3T

Fanless Embedded Industrial Computer with Intel® I3-12100T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-12TH-I5T

Fanless Embedded Industrial Computer with Intel® I5-12500T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-12TH-I7T

Fanless Embedded Industrial Computer with Intel® I7-12700T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-12TH-I9T

Fanless Embedded Industrial Computer with Intel® I9-12900T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-12TH-I3

Fanless Embedded Industrial Computer with Intel® I3-12100, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-13TH-I3T

Fanless Embedded Industrial Computer with Intel® I3-13100T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-13TH-I5T

Fanless Embedded Industrial Computer with Intel® I5-13500T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-13TH-I7T

Fanless Embedded Industrial Computer with Intel® I7-13700T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-13TH-I9T

Fanless Embedded Industrial Computer with Intel® I9-13900T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-13TH-I3

Fanless Embedded Industrial Computer with Intel® I3-13100, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-14TH-I3T

Fanless Embedded Industrial Computer with Intel® I3-14100T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-14TH-I5T

Fanless Embedded Industrial Computer with Intel® I5-14500T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-14TH-I7T

Fanless Embedded Industrial Computer with Intel® I7-14700T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-14TH-I9T

Fanless Embedded Industrial Computer with Intel® I9-14900T, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU

MBOX-602-GT-14TH-I3

Fanless Embedded Industrial Computer with Intel® I3-14100, 3 GLAN, 10 USB, 5 COM, HDMI+DP, Audio and PSU
