Module 8 kênh đầu ra Relay ICP DAS I-87068W-2A-G CR
Feature
• Form A & Form C Relay Output
• Dual Watchdog
• Configurable Power-on Settings
• Configurable Safe Value Settings
Introduction

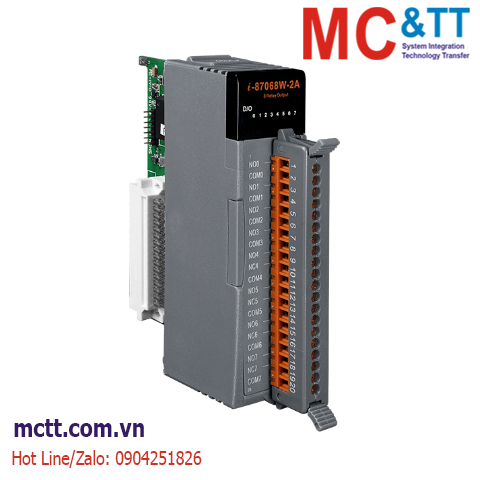

The I-87068W-2A provides 4 Form A signal relay output channels and 4 Form C signal relay output channels. The I-87068W-2A include 8 LED indicators for monitoring the relay output status and provide options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The I-87068W-2A is the ideal solution for small signal switching.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (Form A × 4, Form C × 4) |
| Type |
Signal Relay |
| Contact Rating |
Form A Load Current:
2 A @ 30 VDC (Max.)
0.24 A @ 220 VDC (Max.)
0.25 A @ 250 VAC (Max.)
1 uA @ 100 uV (Min.)
Form C Load Current:
2 A @ 30 VDC (Max.)
0.24 A @ 220 VDC (Max.)
0.25 A @ 250 VAC (Max.)
1 uA @ 100 uV (Min.) |
| Operate Time |
Form A: 3 ms (typical)
Form C: 3 ms (typical) |
| Release Time |
Form A: 4 ms (typical)
Form C: 4 ms (typical) |
| Electrical Endurance |
Form A: 2*10^5 ops
Form C: 2*10^5 ops |
| Mechanical Endurance |
Form A: 10^8 ops
Form C: 10^8 ops |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
1.2 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 115 x 102 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87068W-2A-G CR |
4-ch Form A Signal Relay and 4-ch Form C Signal Relay Module (2A Rating Current) (RoHS) |
