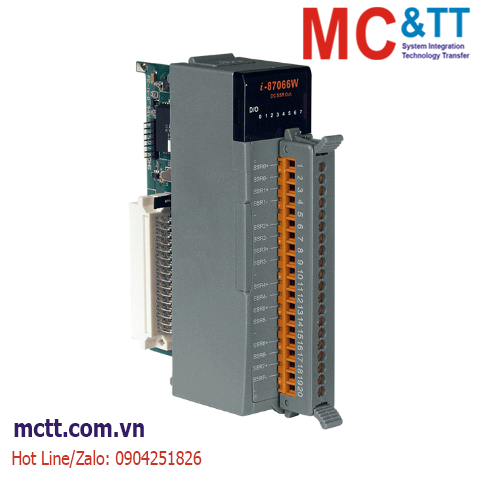

Module 8 kênh đầu ra DC-type SSR Relay ICP DAS I-87066W-G CR
Feature
• 8-channel DC SSR Output
• Form A DC Solid State Relay Output
• Fast Operating/Release Time
• No Arcing, Bouncing, or Switching Noise
• Configurable Power-on Value
• Configurable Safe Value
• Unlimited Relay Lifetime
Introduction
The I-87066W module provides 8 DC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates the potential for arcing, bouncing, and switching noise. The I-87066W includes 8 LED indicators that can be used to monitor the status of the SSR output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (Form A) |
| Type |
Solid State Relay (DC) |
| Contact Rating |
Operating Voltage Range: +3 ~ +30 VDC
Max. Load Current: 1 A
Leakage Current: 0.1 mA |
| Operate Time |
1 ms (Min.) |
| Release Time |
1 ms (Min.) |
| Electrical Endurance |
Long Life, No Arcing, No Bounce, No Switching Noise |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
0.6 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 115 x 102 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87066W-G CR |
8-ch DC-type SSR Relay Module (RoHS) |
