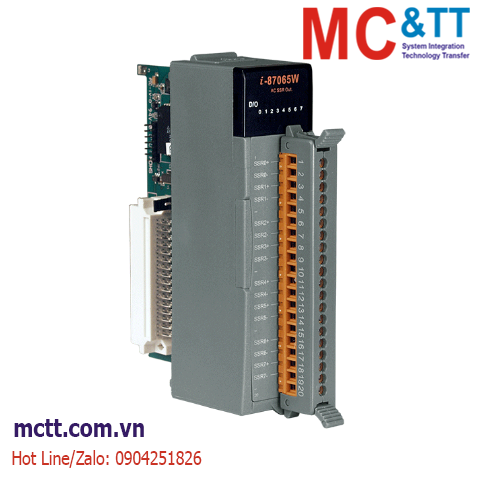

Module 8 kênh đầu ra AC-type SSR Relay ICP DAS I-87065W-G CR

Chia sẻ:
Mã sản phẩm: I-87065W-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch AC-type SSR Relay Module

Liên hệ
Mô tả

Module 8 kênh đầu ra AC-type SSR Relay ICP DAS I-87065W-G CR

Feature

• 8-channel AC SSR Output
• Form A AC Solid State Relay Output
• Fast Operating/Release Time
• No Arcing, Bouncing, or Switching Noise
• Configurable Power-on Value
• Configurable Safe Value
• Fast Response Time
• Unlimited Relay Lifetime

Introduction

The I-87065W module provides 8 AC Solid State Relay (SSR) Output channels. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of AC SSR technology also eliminates the potential for arcing, bouncing, or switching noise. The I-87065W includes 8 LED indicators that can be used to monitor the status of the SSR output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
8 x I/O
Relay Output
Channels 8 (Form A)
Type Solid State Relay (AC)
Contact Rating Operating Voltage Range: +24 ~ +265 VAC
Max. Load Current: 1 A
Leakage Current: 1.5 mA
Operate Time 1/2 cycle + 1 ms (Min.)
Release Time 1/2 cycle + 1 ms (Min.)
Electrical Endurance Long Life, No Arcing, No Bounce, No Switching Noise
Power on Value Yes
Safe Value Yes
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format N, 8, 1
Protocol DCON
Power
Consumption 0.6 W Max.
Mechanical
Dimensions (mm) 30 x 115 x 102 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87065W-G CR 8-ch AC-type SSR Relay Module (RoHS)
