Module 4 kênh đầu ra Relay + 4 kênh DI ICP DAS I-87063W-G CR

Chia sẻ:
Mã sản phẩm: I-87063W-G
Thương hiệu: ICP DAS
Tình trạng:

4-ch Isolated DI and 4-ch Power Relay Module

Liên hệ
Mô tả

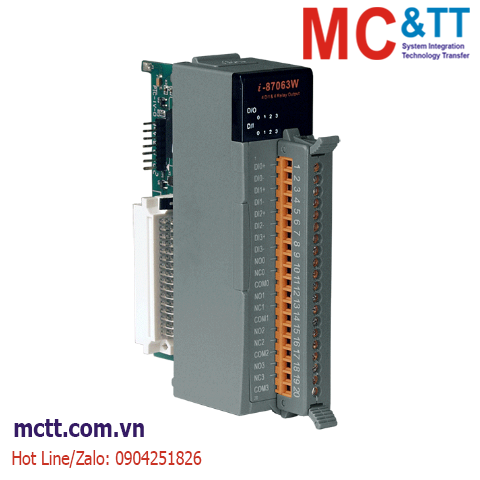

Module 4 kênh đầu ra Relay + 4 kênh DI ICP DAS I-87063W-G CR

Feature

• 4-channel Digital Input and 4-channel Relay Output
• Form C Power Relay Output
• Sink- and Source-type Digital Input Channels
• Digital Input Channels can be used as 16-bit Counters
• Configurable Power-on Value
• Configurable Safe Value

Introduction

The I-87063W module provides 4 isolated Digital Input channels and 4 Form C Relay Output channels. All Digital Input channels can be used as 16-bit counters. In addition, either sink- or source-type Digital Input can be selected via the wire connections. The I-87063W includes 8 LED indicators that can be used to monitor the status of the Digital Input and Relay Output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 3750 Vrms
EMS Protection
ESD (IEC 61000-4-2) ± 4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
8 x I/O
Digital Input/Counter
Channels 4
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +3.5 VDC ~ +30 VDC
OFF Voltage Level +1 VDC Max.
Max. Counts 16-bit (65535)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 3 kΩ, 0.25 W
Relay Output
Channels 4 (Form C)
Type Power Relay
Contact Rating Form C:
5 A (NO)/3 A (NC) @ 30 VDC (Resistive Load)
5 A (NO)/3 A (NC) @ 277 VAC (Resistive Load)
Operate Time 10 ms (Max.)
Release Time 5 ms (Max.)
Electrical Endurance 1 × 10^5 ops.
Mechanical Endurance 5 × 10^6 ops.
Power on Value Yes
Safe Value Yes
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format N, 8, 1
Protocol DCON
Power
Consumption 1.5 W Max.
Mechanical
Dimensions (mm) 30 x 115 x 102 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-87063W-G CR 4-ch Isolated DI (Wet) and 4-ch Form C Power Relay Module (RoHS)
