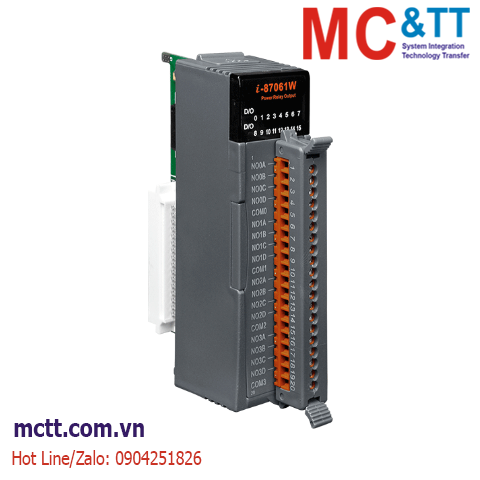

Module 16 kênh đầu ra Relay ICP DAS I-87061W-G CR
Feature
• 16-channel Power Relay Output partitioned into four groups, where each group provides four channels that share a single COM point.
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
Introduction
The I-87061W is a 16-channel power relay output module with the output channels partitioned into four groups, where each group provides four channels that share a single COM point. The I-87061W modules include 16 LED indicators that can be used to monitor the status of the relay output, and options for configuring both power-on and safe relay output values are also available. 4 kV ESD protection and 3750 VDC intra-module isolation are provided as standard to enhance the noise protection capabilities in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
16 x I/O |
| Relay Output |
| Channels |
16 (Form A) |
| Type |
Power Relay |
| Contact Material |
Silver Tin Alloy |
| Contact Rating |
Form A:
10 A @ 250 VAC/per Module COM point
10 A @ 24 VDC/per Module COM point
Max. Single Relay Load Current 5 A at 25°C
Min. Contact Load: 10 mA @ 5 V |
| Operate Time |
10 ms (Max.) |
| Release Time |
5 ms (Max.) |
| Electrical Endurance |
1 × 10^5 ops. |
| Mechanical Endurance |
2 × 10^7 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
1.9 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 114 x 110 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87061W-G CR |
16-ch Form A Power Relay Module (4 groups, every 4 channels in a group share a single COM point) (10A Rating Current) (RoHS) |
