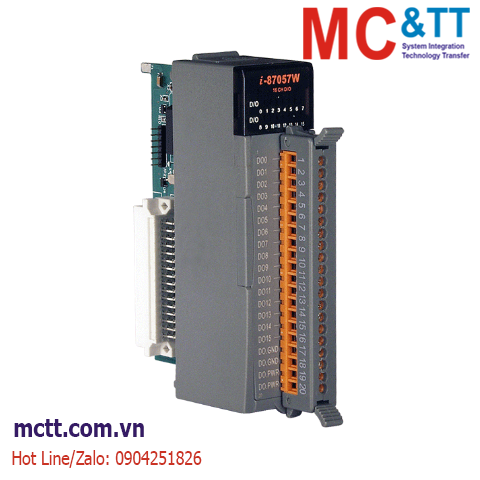

Module 16 kênh đầu ra số DO ICP DAS I-87057W-G CR
Feature
• Support Digital Outputs (Sink Type)
• Photocouple Isolation
Introduction
I-87057W offers 16-channel sink type digital outputs. All channels features Photocouple isolation. I-87057W has 16 LED indicators for DO channel status. 4 KV ESD protection and 3750 V intra-module isolation are standard.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 Vrms |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
16 x I/O |
| Digital Output |
| Channels |
16 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 VDC ~ +30 VDC |
| Load Current |
100 mA/channel |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
1.0 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87057W-G CR |
16-ch Isolated DO (Sink, NPN, 5~30VDC) Module (RoHS) |
