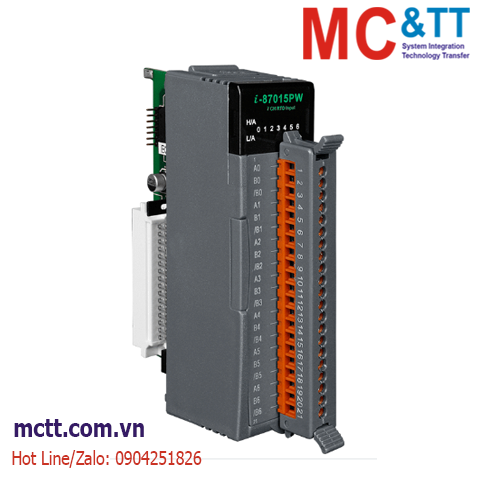

Module 7 kênh đầu vào RTD ICP DAS I-87015PW-G CR
Feature
• 7-channel RTD Input
• 3-wire RTD Lead Resistance Elimination
• High Resolution: 16-bit
• Individual Channel Configuration
• Open Wire Detection
• Overvoltage Protection
Introduction
The I-87015PW is specially designed for long-distance RTD measurement, and features automatic compensation function for three-wire RTD, so it can be accurately measured regardless of the wire length. It is a 7-channel RTD input module for measuring temperature using RTD. Each channel can be connected to a different kind of RTD sensor, which provides high overvoltage protection of 120 VDC, and also has an open circuit detection function for each channel of the RTD input. The module is fully RoHS compliant and has 4 kV ESD protection and 3000 VDC module internal isolation.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
14 x I/O |
| Analog Input |
| Channels |
7 |
| Type |
RTD |
| Sensor Type |
Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000 |
| Resolution |
16-bit |
| Accuracy |
±0.05% of FSR |
| Sampling Rate |
12 Hz (Total) |
| Bandwidth |
15.7 Hz |
| Input Impedance |
>1 MΩ |
| Common Mode Rejection |
150 dB |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
±120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| 3-wire RTD Lead Resistance Elimination |
Yes |
| Zero Drift |
±0.5 μV/°C |
| Span Drift |
±20 ppm/°C |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 to 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
1.0 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87015PW-G CR |
7-ch RTD Input Module with 3-wire Lead Resistance Elimination (RoHS) |
