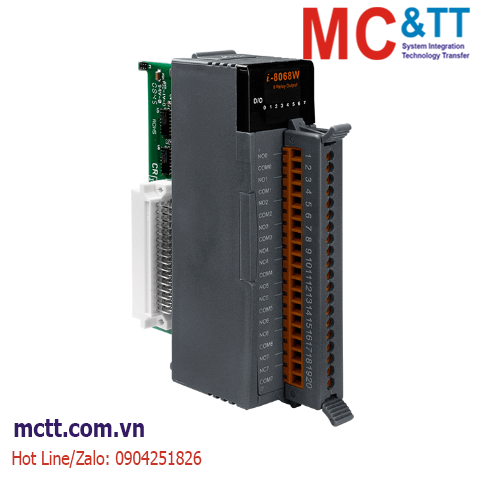

Module 8 kênh đầu ra Relay ICP DAS I-8068W-G CR
Feature
• 8-channel Power Relay Output
• Form A & Form C Relay Output
Introduction
The I-8068W provides 4 Form A power relay output channels and 4 Form C power relay output channels. The I-8068W include 8 LED indicators for monitoring the relay output status.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (4 x Form A, 4 x Form C) |
| Type |
Power Relay |
| Contact Rating |
Form A: 5 A @ 250 VAC / 28 VDC
Form C: 5 A (NO)/3 A (NC) @ 30 VDC
5 A (NO)/3 A (NC) @ 277 VAC |
| Operate Time |
Form A: 15 ms Max.
Form C: 10 ms Max. |
| Release Time |
Form A: 4 ms Max.
Form C: 5 ms Max. |
| Electrical Endurance |
Form A: 100,000 ops. (rated load)
Form C: 100,000 ops. (rated load) |
| Mechanical Endurance |
Form A: 100,000,000 ops. (no load)
Form C: 50,000,000 ops. (no load) |
| Power |
| Consumption |
2.5 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8068W-G CR |
4-ch Form A and 4-ch Form C Power Relay Module (RoHS) |
