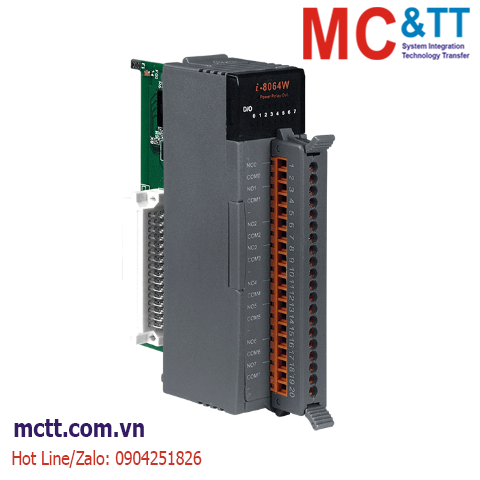

Module 8 kênh đầu ra Relay ICP DAS I-8064W-G CR
Feature
• 8-channel Power Relay Output
• Form A Power Relay Output
• 500 VDC Intra-module Isolation
Introduction
The I-8064W module provides 8 Form A Relay Output channels, and is an ideal solution for highpower applications. The I-8064W includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, 4 kV ESD protection and 500 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Digital Output |
| Load Current |
5.0 Arms |
| Relay Output |
| Channels |
8 (Form A, Normal Open) |
| Type |
Power Relay |
| Contact Rating |
5 A @ 250 VAC (47 ~ 63 Hz);
5 A @ 30 VDC |
| Operate Time |
6 ms Max. |
| Release Time |
3 ms Max. |
| Electrical Endurance |
100,000 Min. Resistive |
| Mechanical Endurance |
2 x 100,000,000 Min. |
| Power |
| Consumption |
1.1 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8064W-G CR |
8-ch Form A Power Relay Module (RoHS) |
