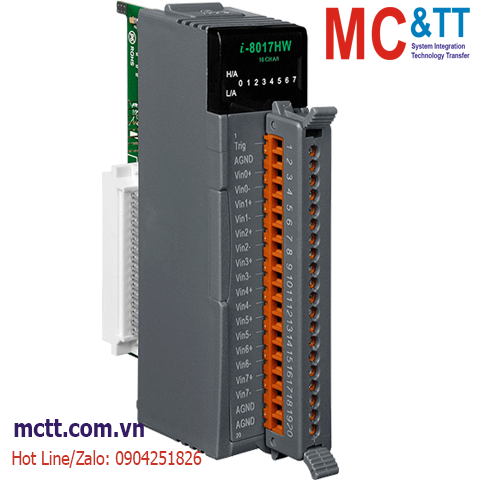

Module 8/16 kênh AI ICP DAS I-8017HW-G CR
Feature
• 8 Differential/16 Single-ended Analog Inputs
• Voltage or Current Input
• 14-bit 100 kHz AD Converter
• Internal Trigger
• Individual Channel Configuration
• ±4 kV ESD Protection
• 2500 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 ~ +75 °C
Introduction
The I-8017HW is a high performance Analog Input Module. Up to 16 single-ended or 8 differential input channels are provided with 14-bit of resolution and 90 kS/s sampling rate. Each channel can be configured to an individual input range of ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC or ±20 mA. The modules also provide ±4 kV ESD protection as well as 2500 VDCintra-module isolation. All the three modules can be used to measure voltage and current source. On the I-8017HW, an external 125 Ω resistor is needed to measure current source.
Application
• High speed data acquisition system
• Process monitor and control
• Vibration analysis
• Digital pattern generator from digital I/O port
Specifications
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
16 x I/O |
| Analog Input |
| Channels |
16-ch Single-ended/8-ch Differential |
| Range |
Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC
Current: ±20 mA, Requires Optional External 125 Ω Resistor |
| Resolution |
14-bit |
| Accuracy |
±0.1% of FSR |
| Sampling Rate |
Single Channel Polling Mode: 90 kS/s
Single Channel Interrupt Mode: 50 kS/s
8 channel Scan Mode: 16 kS/s |
| Bandwidth |
100 kHz |
| Input Impedance |
20 K, 200 K, 20 M (Jumper Selectable) |
| Individual Channel Configuration |
Yes |
| Zero Drift |
±0.1 uV/°C |
| Span Drift |
±10 ppm/°C |
| Power |
| Consumption |
2 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8017HW-G CR |
8/16-ch AI Module with 20-Pin Terminal Block (Current Input Mode: Requires Optional External 125 Ω Resistor) (RoHS) |
