Bộ chuyển đổi Profibus sang RS-232/422/485 ICP DAS I-7550-B CR

Chia sẻ:
Mã sản phẩm: I-7550-B
Thương hiệu: ICP DAS
Tình trạng:

PROFIBUS to RS-232/422/485 Converter

Liên hệ
Mô tả

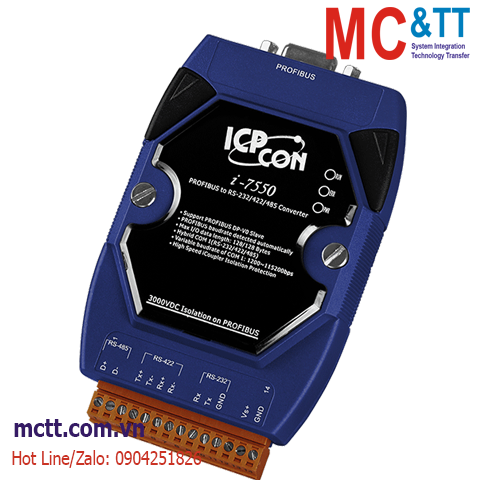

Bộ chuyển đổi Profibus sang RS-232/422/485 ICP DAS I-7550-B CR

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 128 Bytes
  • Max Output Data Length : 128 Bytes
  • Address Setting : 0~126 set by DIP switch
  • Hybrid COM 1 : RS-232/422/485 with “Self Tuner” inside
  • Supports COM 1 Data Format : 7/8 data bits, No/Odd/Even parity, 1 stop bit
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side

Introduction

The I-7550 converter is specially designed for the slave device of PROFIBUS DP protocol. It offers RS-232, RS-422, and RS-485 three kinds of communication way. With the Hybrid COM 1 design, users can readily choose one type of com port to use. By using this module, users can put their RS-232/422/485 devices into PROFIBUS network very easily.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
COM Ports
Ports RS-232/RS-422/RS-485(can’t be used simultaneously)
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-)
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1
PROFIBUS
Controller Siemens SPC3
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 2.5 W
Mechanical
Dimensions (mm) 72 x 33 x 119 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +85 ℃
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7550-B     CR  PROFIBUS to RS-232/422/485 Converter (Plastic Case) (RoHS)
