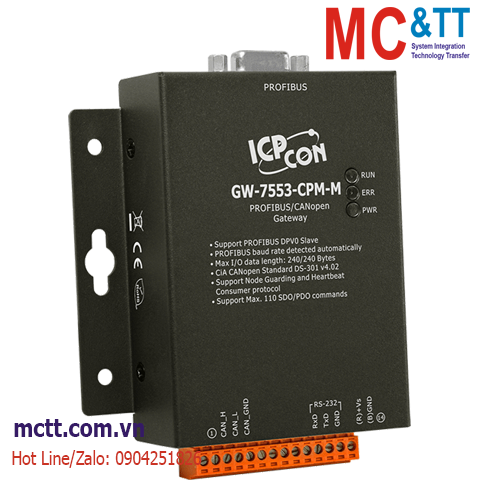

Bộ chuyển đổi Profibus sang CANOpen ICP DAS GW-7553-CPM-M CR
Features
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Max Input Data Length : 240 Bytes
- Max Output Data Length : 240 Bytes
- PROFIBUS Address Setting : 0~126 set by DIP switch
- Supports CANopen Standard : CiA CANopen Standard DS-301 v4.02
- Supports CANopen Consumer protocol : Node Guarding and Heartbeat Consumer protocol
- Number of CANopen Commands : Support 110 CANopen SDO/PDO commands
- Network Isolation Protection : 2500 Vrms High Speed iCoupler
- DC Isolation Protection : 3000VDC on PROFIBUS side
Introduction
The GW-7553-CPM Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the CANopen slave devices. We also provide the utility software for users to configure the GW-7553-CPM. By using this module, users can put their CANopen devices into PROFIBUS network very easily.
Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
80186, 80 MHz or compatible |
| EEPROM |
16 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Watchdog IC
CPU built-in |
| LED Indicators |
| Status |
PWR LED, RUN LED, ERR LED |
| COM Ports |
| Ports |
RS-232 (For updating firmware and configuration)
3-pin screwed terminal block (RxD, TxD, GND) |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity |
None, Even, Odd |
| Data Bit |
7, 8 |
| Stop Bit |
1, 2 |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Specification |
CANopen DS-301 ver4.02 |
| PROFIBUS |
| Controller |
Profichip VPC3+C |
| Transceiver |
ADI ADM2486 |
| Baud Rate |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| Mechanical |
| Dimensions (mm) |
72 x 33 x 119 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75℃ |
| Storage Temperature |
-30 ~ +85 ℃ |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GW-7553-CPM-M |
PROFIBUS to CANopen Gateway (Metal Case) (RoHS) |
