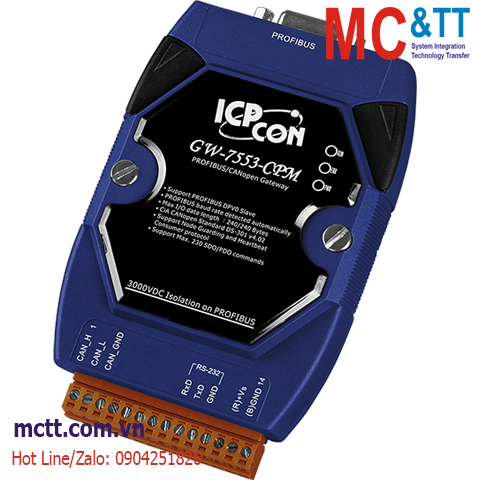

Bộ chuyển đổi Profibus sang CANOpen ICP DAS GW-7553-CPM CR

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • PROFIBUS Address Setting : 0~126 set by DIP switch
  • Supports CANopen Standard : CiA CANopen Standard DS-301 v4.02
  • Supports CANopen Consumer protocol : Node Guarding and Heartbeat Consumer protocol
  • Number of CANopen Commands : Support 110 CANopen SDO/PDO commands
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side

Introduction

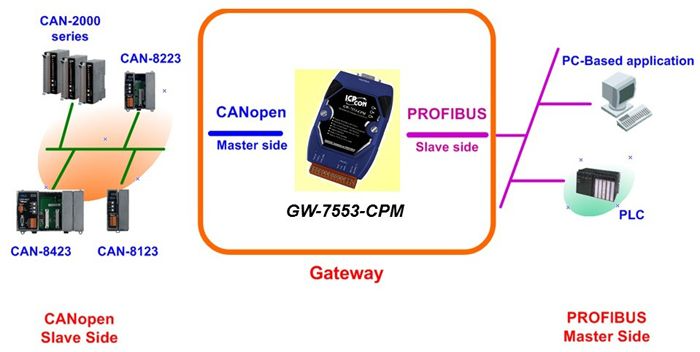

The GW-7553-CPM Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the CANopen slave devices. We also provide the utility software for users to configure the GW-7553-CPM. By using this module, users can put their CANopen devices into PROFIBUS network very easily.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
COM Ports
Ports RS-232 (For updating firmware and configuration)
3-pin screwed terminal block (RxD, TxD, GND)
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1, 2
CAN
Controller NXP SJA1000T with 16 MHz clock
Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Specification CANopen DS-301 ver4.02
PROFIBUS
Controller Profichip VPC3+C
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 2.5 W
Mechanical
Dimensions (mm) 72 x 33 x 119 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +85 ℃
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-7553-CPM     CR  PROFIBUS to CANopen Gateway (Plastic Case) (RoHS)
