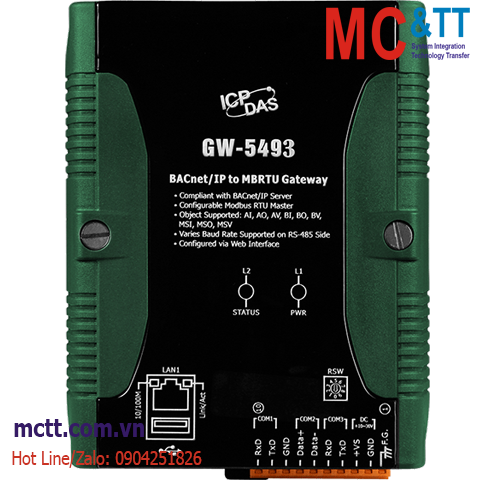

Bộ chuyển đổi BACnet/IP sang Modbus TCP/IP ICP DAS GW-5493 CR

Chia sẻ:
Mã sản phẩm: GW-5493 CR
Thương hiệu: ICP DAS
Tình trạng:

BACnet/IP to Modbus TCP Gateway, Replaced by GW-2493M CR

Liên hệ
Mô tả

Bộ chuyển đổi BACnet/IP sang Modbus TCP/IP ICP DAS GW-5493 CR

GW-5493 CR dừng và thay thế bằng GW-2493M CR

Features

  • Read/Write Modbus registers via BACnet objects
  • Configurable BACnet/IP Server
  • Configurable Modbus TCP Client
  • Supports up to 200 Objects every type, AI, AO, AV, BI, BO, BV, MSI, MSO, MSV
  • Supports Modbus discrete inputs, coils, input registers and holding registers

Introduction

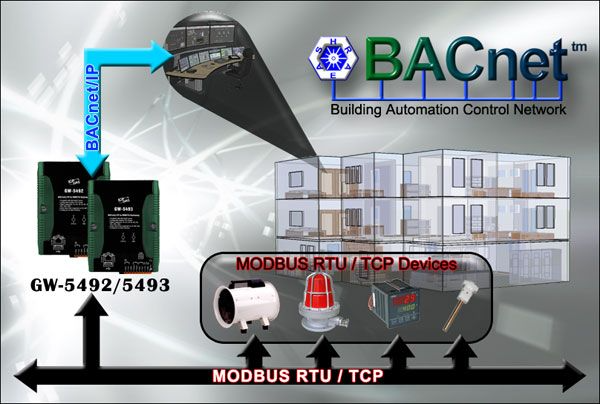

GW-5493 is a fully configurable universal Modbus RTU to BACnet/IP gateway. The GW-5493 includes BACnet/IP Server and Modbus TCP Client which is used to make Modbus TCP devices accessible on a BACnet network. BACnet (Building Automation and Control Networking) protocol has been designed specifically to meet the communication needs of building automation and control systems for applications such as heating, ventilating, air-conditioning control…etc. The GW-5493 contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus RTU registers to any combination of BACnet objects. Multiple BIBBs (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B…etc.) are supported. All the data transfer is configurable using a standard Web browser.

Applications

  • Building Automation
  • Heating, Ventilating, and Air-conditioning Control
  • Lighting Control
  • Access Control
  • Fire Detection Systems

Specifications

CPU Module
CPU 32-bit
EEPROM 16 KB
Flash 64 MB
SRAM 64 MB
COM Ports
Ports RS-232 (RxD, TxD, and GND); Non-isolation
Ethernet
Ports 10/100Base-TX Ethernet Controller
BACnet/IP
Protocol Modbus TCP Client
Objects AI, AO, AV, BI, BO, BV, MSI, MSO, MSV (Maximum: 200 each)
BIBBs DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B
Power
Input Range +10 ~ +30 VDC
Consumption 4.8 W (0.2 A @ 24 VDC)
Mechanical
Casing Plastic
Dimensions (mm) 91 x 132 x 52
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 5 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-5493     CR  BACnet/IP to Modbus TCP Gateway (RoHS)
