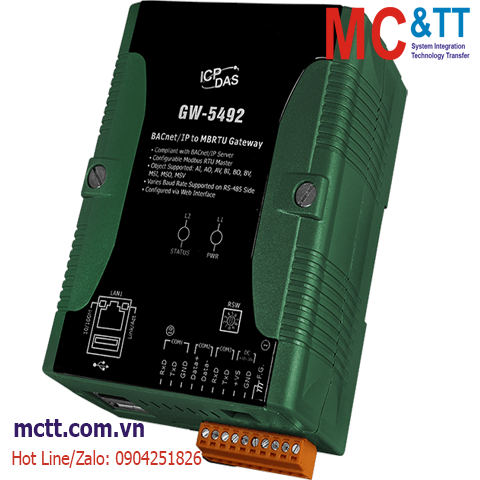

Bộ chuyển đổi BACnet/IP sang Modbus RTU ICP DAS GW-5492 CR
GW-5492 CR dừng và thay thế bằng GW-2492M CR
Features
- Read/Write Modbus registers via BACnet objects
- Configurable BACnet/IP Server
- Configurable Modbus RTU Master
- Supports up to 200 Objects every type, AI, AO, AV, BI, BO, BV, MSI, MSO, MSV
- Supports Modbus discrete inputs, coils, input registers and holding registers
Introduction
GW-5492 is a fully configurable universal Modbus RTU to BACnet/IP gateway. The GW-5492 includes BACnet/IP Server and Modbus RTU Master which is used to make Modbus RTU devices accessible on a BACnet network. BACnet (Building Automation and Control Networking) protocol has been designed specifically to meet the communication needs of building automation and control systems for applications such as heating, ventilating, air-conditioning control…etc. The GW-5492 contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus RTU registers to any combination of BACnet objects. Multiple BIBBs (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B…etc.) are supported. All the data transfer is configurable using a standard Web browser.
Applications
- Building Automation
- Heating, Ventilating, and Air-conditioning Control
- Lighting Control
- Access Control
- Fire Detection Systems
Specifications
| CPU Module |
| CPU |
32-bit |
| EEPROM |
16 KB |
| Flash |
64 MB |
| SRAM |
64 MB |
| COM Ports |
| Ports |
COM1: RS-232 (RxD, TxD, and GND); Non-isolation
COM2: RS-485 (D2+, D2-); 2500 VDC; isolated |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000Base-TX |
| BACnet/IP |
| Protocol |
Modbus RTU Master |
| Objects |
AI, AO, AV, BI, BO, BV, MSI, MSO, MSV (Maximum: 200 each) |
| BIBBs |
DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
4.8 W (0.2 A @ 24 VDC) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
91 x 132 x 52 |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GW-5492 CR |
BACnet/IP to Modbus RTU Gateway (RoHS) |
