7" HMI GREEN Series
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

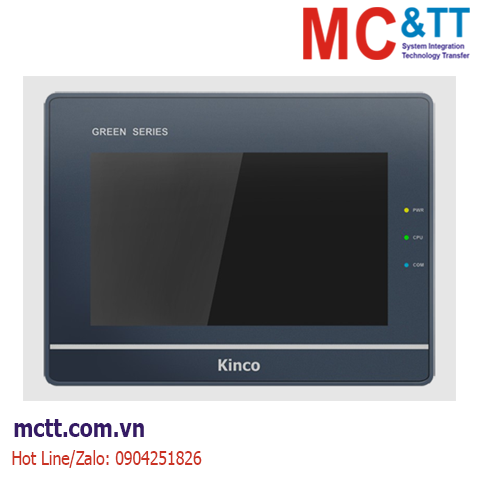

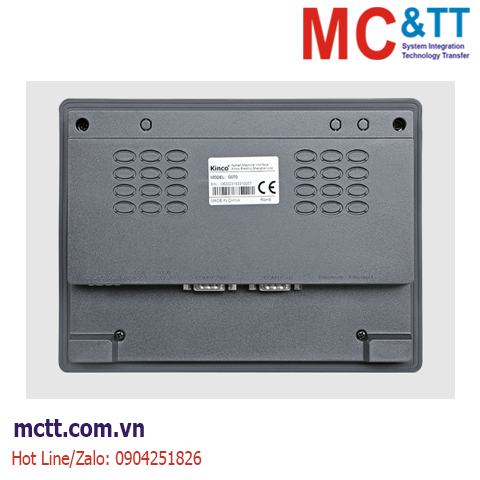

Màn hình cảm ứng HMI 7 inch Kinco G070E (3 COM, 1 USB Host, Ethernet)
The Green Series G070 is the most modern and powerful HMI product that will make your application work seamlessly, without missing a step. The GL070 Series has a new structure and elegant body, compared to previous HMI ’s. This HMI line comes with a 16.77 million Color Display mode that gives your touch screen rich color and incomparable resolution.
The Green Series products use the most advantageous ARM Cortex-A7 architecture industrial-grade processors, which ensure that the HMI ’s work efficiently. Furthermore, it has a much higher hardness and intensity with a higher temperature resistance. Each HMI supports simultaneous communications via its multiple serial ports, so that you can connect to different controllers at the same time. With the simple, convenient and powerful DTools configuration software, the user can master its design method and create first-class programs efficiently.
Tính năng
Thông số kỹ thuật
Model |
G070 |
G070E |
G070E-CAN |
Performance specification |
|||
Display size |
7" TFT |
||
Display area |
154.08 (W) x 85.92 (H) (mm) |
||
Resolution |
800*480 pixels |
||
Display color |
16.7M color |
||
Display angle of view |
70/70/60/70 (left/right/up/down) |
||
Contrast ratio |
500:1 |
||
Backlight |
LED |
||
Brightness |
400cd/m2 |
||
Backlight life |
More than 30000 hours |
||
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
||
CPU |
ARM RISC 32Bit 800MHz |
||
Storage |
128MB NAND Flash Memory + 128MB DDR3 Memory |
||
RTC |
Built-in real time clock |
||
Extensible memory |
1 USB Host |
||
Printer port |
USB Host/ Serial port |
||
Ethernet |
None |
10/100MHz self-adaption |
10/100MHz self-adaption |
Bus Interface | None | None | 1*CANopen |
Program download |
USB Slave(Micro USB) /U disk |
USB Slave (Micro USB)/ U disk/ Ethernet | USB Slave (Micro USB)/ U disk/ Ethernet |

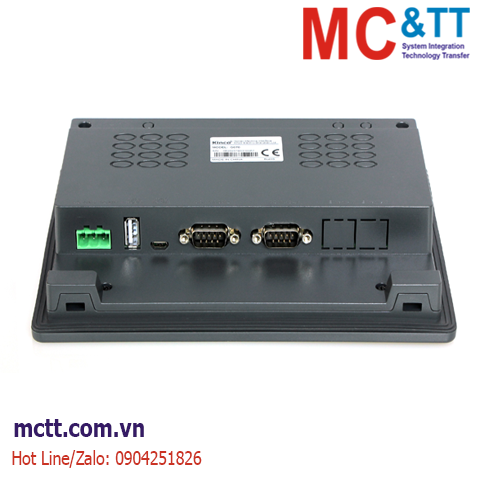

COM port |
COM0: RS232/RS485/RS422; COM1: RS485/RS422; COM2: RS232 | ||
Electrical specification |
|||
Input power supply |
DC10V~DC28V,Built-in isolation power supply |
||
Rated power |
3.8W @24V DC |
||
Allowable loss of power |
<3ms |
||
Insulation resistance |
Over 50MΩ@500V DC |
||
Hi-pot test |
500V AC 1 minute |
||
Structure specification |
|||
Shell material |
Engineering plastic |
||
Dimensions(mm) |
204mm*150mm*34mm |
||
Cutout size(mm) |
192mm*138mm |
||
Weight |
0.5 Kg |
||
Environment specification |
|||
Operating temperature |
0~50℃ |
||
Operating humidity |
10~90% non-condensing |
||
Storage temperature |
-20~60℃ |
||
Storage humidity |
10~90% non-condensing |
||
Shockproof test |
10~25Hz (X, Y, Z direction, 2G, 30 minutes) |
||
Cooling method |
Natural air cooling |
||
Certification |
|||
Degree of protection |
Conforming to IP65 certification (4208一93) |
||
CE certification |
CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 | ||
Software |
|||
Configuration software |
Kinco DTools V4.1 and above version |
Thông tin đặt hàng
7″, 16.77 million, TFT, 800*480 resolution, 3*COM, 1*USB HOST, 1*USB SLAVE, Ethernet, isolation power
