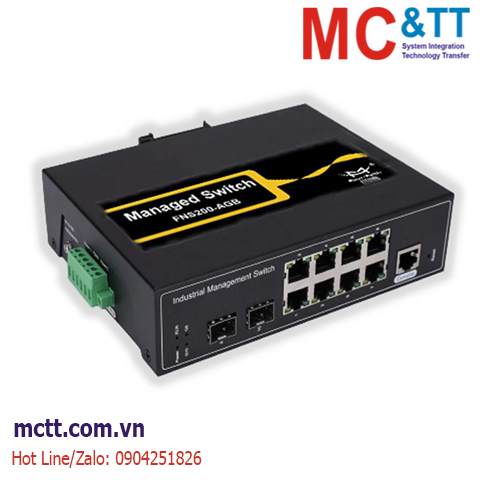

Switch công nghiệp quản lý 8 cổng Gigabit Ethernet + 2 cổng Gigabit SFP Four-Faith FNS200-AGB
FNS200-AGB is a managed industrial Ethernet POE switch, which complies with FCC, CE, and RoHS standards. Support 2 Gigabit optical ports and 8 gigabit electrical ports; It supports the Ethernet layer 2 protocol required by the industrial field to ensure the stability of the communication network. The series switch adopts low power consumption, a fan less design to ensure no noise interference, while supporting -40~70℃ operating temperature, and good EMC electromagnetic compatibility performance, to ensure stable work in the harsh industrial environment, for factory automation, intelligent transportation, Video surveillance, and other industrial applications to set up fast and stable network. terminal access network to provide safe and reliable solutions.
Tính năng
- Metal casing, IP40 protection level
- Wide range operating temperature (-40ºC~70ºC)
- Support STP/RSTP/ERPS, SNMPv1/v2/v3 to ensure network security
- Support DIN-Rail mounting
- Managed Ethernet Switch support IGMP Snooping
- Support port based VLAN port, IEEE 802.1Q VLAN, easy network planning
- Using RMON to improve the prediction capability of network monitoring machine
- Support port mirroring function facilitates online debugging
- Support port rate limiting, broadcast storm suppression
- Support multicast storm suppression, unknown unicast storm suppression
- Managed Ethernet Switch support security management: ACL, 802.1X
- Management function: supports WEB, CLI, and SNMP management
- Support port mirroring, interface status monitoring, log management
- Alarm function: Supports power abnormal status relay output
Thông số kỹ thuật
| Standard |
|
| Items |
Contents |
| Ethernet Standard |
IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab logical Link discovery protocol, IEEE802.1D-Spanning Tree Protocol, IEEE802.1w-Rapid Spanning Tree Protocol, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service, IEEE802.1X-Port Based Network Access Control and,etc. |
| Industry Standard |
EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMC:
IEC(EN)61000-4-2(ESD): ±6kV Contact discharge, ±8kV Air discharge
IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)
IEC(EN)61000-4-4(EFT): ethernet port: ±2kV CM//±1kV DM.
IEC(EN)61000-4-5(Surge): ethernet port: ±2kV CM//±1kV DM.
IEC(EN)61000-4-6(Radio frequency conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz)
IEC(EN)61000-4-16(Common mode conduction): 30V cont. 300V,1s
IEC (EN)61000-4-8
Shock：IEC 60068-2-27
Freefall：IEC 60068-2-32
Vibration：IEC 60068-2-6 |
| Interface |
|
| Items |
Contents |
| SFP Slot |
Number：2
Type：1000BaseFX port (SFP slot), supporting 100 megabytes |
| Ethernet Port |
Number：8
Type：RJ45, 10/100/1000M automatic detection, full/half duplex MDI/MDI-X adaptive |
| Optical Fiber |
Support single-mode/multi-mode fiber, multi-mode fiber: 550M; Single-mode optical fiber: 20/40/60/80/100KM |
| Switching Characteristics |
|
| Items |
Contents |
| Buffer Memory |
12Mbit |
| Transmission Method |
Store-and-forward |
| Backplane Bandwidth |
38G |
| Switching Latency |
<10μs |
| MAC Address |
8K |
| Power |
|
| Items |
Contents |
| Input Voltage |
DC48-57V (Dual power redundancy backup) |
| Access Terminal |
Phoenix terminal block |
| Characteristics |
Support dual power supply redundancy
Support built-in over-current protection
Support reverse connection protection with 4.0 A |
| Operating Environment |
|
| Items |
Contents |
| Operating Temperature |
-40 ºC ~70 ºC |
| Storage Temperature |
-40 ºC ~75 ºC |
| Relative Humidity |
0~90% (Non-condensing) |
| POE Standard |
|
| Items |
Contents |
| PoE Standard |
IEEE802.3af/ IEEE802.3at |
| PoE Port |
1-8 port support PoE |
| Output Power |
Single port maximum power 15.4 W (IEEE 802.3 af), 30 W (IEEE 802.3 at) |
| Other |
|
| Items |
Contents |
| Shell |
IP40 protection level, metal casing |
| Characteristic |
Support the Console, Telnet, SSH, WEB management
Support SNMP v1 / v2c/v3 |
| Dimension |
179.4×137×44mm |
| Weight |
0.82Kg |
| Installation Method |
DIN rail and wall mounted |
| Heat-dissipating Method |
Natural cooling, no fan |
| Redundant Technology |
Support STP/RSTP/MSTP
Support ERPS |
| Multicast Technology |
IGMP snooping，MLD snooping |
| Switching Function |
Support the port speed limit
Support port truck
Support port flow control port VLAN, IEEE 802.1 Q VLAN
Support broadcast storm suppression
Support IPv6 management |
| LED |
Power Indicator: PWR
Port indicator: POE port, SFP port (Link/ACT) |
Thông tin đặt hàng
| Models |
Description |
| FNS200-AGB-8P-SFP240W |
2 Gigabit optical ports + 8 Gigabit adaptive electrical ports, SFP ports, POE function, DC48-57V power supply, wide temperature (-40 ° C -70 ° C), loop network (STP/RSTP/ERPS), WEB/CLI management, SNMP-VLAN, 52V/2.3A power adapter |
| FNS200-AGB-SFP |
2 Gigabit optical ports + 8 Gigabit adaptive electrical ports, SFP ports, DC12-52V power supply, wide temperature (-40 ° C -70 ° C), loop network (STP/RSTP/ERPS), WEB/CLI management, SNMP-VLAN, 24V/1A power adapter |
