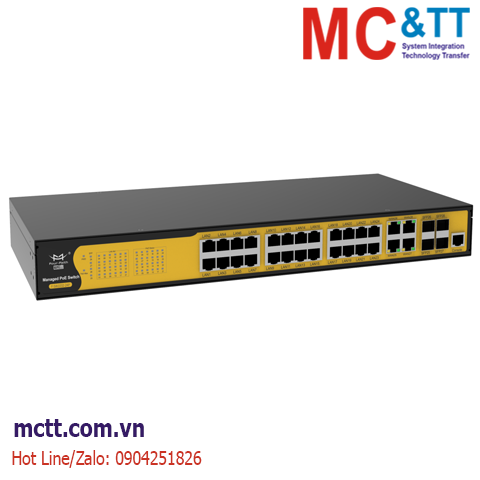

Switch công nghiệp quản lý 4 cổng Gigabit Ethernet + 4 cổng Gigabit SFP + 24 cổng Ethernet Four-Faith F-SW1032
F-SW1032 is an unmanaged industrial ethernet switch. The product has 24 x 10/100M ethernet LAN port, 4 x 10/100/1000M Base-T ethernet port and 4 x 1000M BaseSFP slot. F-SW1032 can be used for connecting multiple servers, hubs, repeaters and devices provides long distance data and power (PoE version) transmission.
Tính năng
- Metal casing, IP40 protection level, suitable for most industrial control applications.
- Wide range operating temperature (-40ºC~40ºC)
- Support power input (110~220V)
- High-speed forwarding ensure data transferred in real-time without blocked
- Support IEEE 802.3/802.3U/802.3x flow control
- Support DIN-Rail mounting
- Support POE (Optional)
- Support 10/100M adaptive ethernet ports, support auto MDI/MDI-X, PoE (Optional)
- Support 1000M BaseSFP slot
- Support 10/100/1000M Base-T Ethernet Port
Thông số kỹ thuật
| Standard |
| Items |
Contents |
| Ethernet Standard |
IEEE802.3 (10 Base-T）)
IEEE802.3u (100Base-TX & 100Base-FX）)
IEEE802.3z (1000Base-TX & 1000Base-X）)
IEEE802.3x (Flow control) |
| Interface |
| SFP Slot |
Number：4
Type：SFP LC, single/dual(Optional)
Rate：1000Base-X |
| 1000M Ethernet Port |
Number：4
Type：RJ45
Rate：10/100/1000M Adaptive |
| 100M Ethernet Port |
Number：24
Type：RJ45
Rate：10/100M Adaptive |
| Transmission Distance |
| Ethernet Cable |
100m (Standard CAT5/CAT5e）)
250m (CAT6) |
| Optical Fiber |
Support single/dual mode fiber
Dual：550m
Single：20/40/60/80/100Km |
| Characteristics |
| Application Level |
2 |
| Processing Type |
Store-and-forward |
| Backplane Bandwidth |
3.6Gbps |
| Packet Forwarding Rate |
2.68Mbps |
| Mac Table Size |
2K |
| Power |
| Input Power |
110~220V |
| Consumption |
<6W PoE Version<240W |
| Interface |
C13 DC |
| Operating Environment |
| Operating Temperature |
-40 ºC ~40 ºC |
| Relative Humidity |
0~90% (Non-condensing) |
| Others |
| IP Rating |
IP40 |
| Weight |
2.1Kg
2.5 Kg (PoE Version) |
| Dimension |
440 x 200 x 45mm |
| Warranty |
1 year |
| Standards |
| EMS |
EN61000-4-2 Level 3
EN61000-4-3 Level 3
EN61000-4-4 Level 3
EN61000-4-5 Level 3
EN61000-4-6 Level 3
EN61000-4-8 Level 4 |
| Shock |
IEC60068-2-27 |
| Freefall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
Thông tin đặt hàng
| Model |
Description |
| F-SW1032-SF |
24 x 10/100M LAN ports, 4 x 10/100/1000 WAN ports, 4 x SFP ports |
| F-SW1032-24P-SF240W |
24 x 10/100M LAN ports with maximum 65W PoE supply; 4 x 10/100/1000 WAN ports; 4 x SFP ports |
