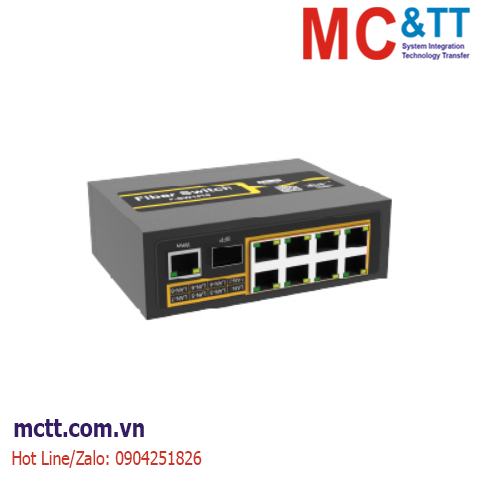

Switch công nghiệp 1 cổng Gigabit Ethernet + 1 cổng Gigabit SFP + 8 cổng Ethernet Four-Faith F-SW1010

Chia sẻ:
Mã sản phẩm: F-SW1010
Thương hiệu: Four-Faith
Tình trạng:

10-Port Unmanaged Industrial PoE Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp 1 cổng Gigabit Ethernet + 1 cổng Gigabit SFP + 8 cổng Ethernet Four-Faith F-SW1010

The product has 8 x 10/100M ethernet LAN port, 1 x 10/100/1000M Base-T ethernet port and 1 x 1000M BaseSFP slot. F-SW1010 can be used for connecting multiple servers, hubs, repeaters and devices provides long distance data and power (PoE version) transmission. F-SW1010 has been widely used in the M2M industry of the IoT industrial chain such as smart grid, intelligent transportation, finance, and etc.

Tính năng

  • Support 10/100M adaptive ethernet ports, support auto MDI/MDI-X, PoE (Optional)
  • Support 1000M BaseSFP slot
  • Support 10/100/1000M Base-T Ethernet Port
  • Metal casing, IP40 protection leve
  • Wide range operating temperature (-40ºC~75ºC)
  • Wide range power input (DC 9~36V)

Thông số kỹ thuật

Ethernet Standard IEEE802.3 (10 Base-T)
IEEE802.3u (100Base-TX &100Base-FX)
IEEE802.3z (1000Base-TX&1000Base-X)
IEEE802.3x (Flow control)
SFP Slot Number:1
Type:SFP LC, single/dual(Optional)
Rate:1000Base-X
1000M Ethernet Port Number:1
Type:RJ45
Rate:10/100/1000M Adaptive
Ethernet Cable 100m(Standard CAT5/CAT5e),250m(CAT6)
Fiber  Support single/dual mode fiber, dual:550M;single:20/40/60/80/100KM
Characters
Application Level 2
Processing Type Store-and-forward
Backplane Bandwidth 3.6Gbps
Packet Forwarding
Rate
2.68Mpps
Mac Table Size 2K
Power
Input Power

DC9~36V, 40~60V (PoE Version)

5.08mmTerminal Block Interface,with Overload Current and Reverse Polarity Protection

Consumption <5W, PoE Version<120W
Operating Environment
Operating Temperature -40℃~75℃
Relative Humidity   0~90% (non-condensing)
Others
IP Rating  IP40
Weight 520g / 610g (PoE Version)
Dimension 134.8mmX115.7X45mm
Warranty 5 Years
Standards
EMS EN61000-4-2 Level 3
EN61000-4-3 Level 3
EN61000-4-4 Level 3
EN61000-4-5 Level 3
EN61000-4-6 Level 3
EN61000-4-8 Level 4
Shock IEC60068-2-27
Freefall IEC60068-2-32
Vibration IEC60068-2-6

Thông tin đặt hàng

Model Description
F-SW1010-SF 8 x 10/100M LAN ports
1 x 10/100/1000 WAN ports, 1 x SFP port
F-SW1010-8P-SF65W 8 x 10/100M LAN ports with maximum 65W PoE supply
1 x 10/100/1000 WAN ports, 1 x SFP port
F-SW1010-8P-SF120W 8 x 10/100M LAN ports with maximum 120W PoE supply
1 x 10/100/1000 WAN ports, 1 x SFP port
