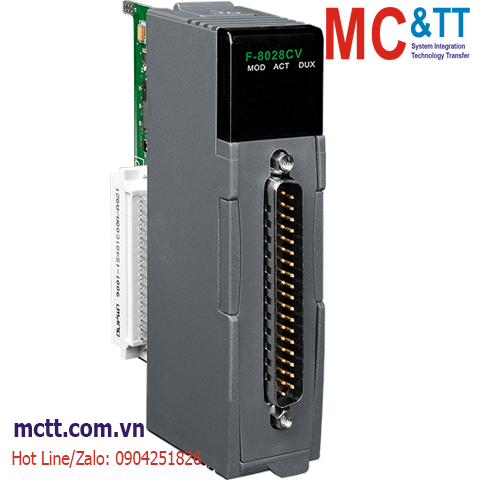

Module 8 kênh đầu ra tương tự AO ICP DAS F-8028CV CR
Features
- 8 current/voltage output channels
- Overrange output
- Short circuit protection
- Open wire detection
- RoHS compliance
- 3000 VDC isolation from output to backplane
- 3000 VDC isolation from output to frame ground
- Redundancy
- Fast redundant switching time (<1 ms)
Introduction
The F-8028CV is a 16-bit, 8-channel analog output module that features programmable output range on all channels. It provides digital to analog conveter controlled by the system module to convert the digital data into output signals. Users can specify the start up and safety value through configuration software. Moreover, this module has ±0.05% accuracy for highly accurate application. Besides, the F-8028CV provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
Yes |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status) |
| Analog Output |
| Channels |
8 |
| Type |
0 ~ 20 mA, 4 ~ 20 mA (current sourcing)
0 ~ 5 V, ±5 V, 0 ~ 5 V, ±10 V |
| Range |
0 ~ 20 mA: +20% (0 ~ 24 mA)
4 ~ 20 mA: ±25% (0 ~ 24 mA)
0 ~ 5 V: +20% (0 ~ 6 V)
±5 V: ±20% (±6V)
0 ~ 5 V: +20% (0 ~ 12 V)
±10 V: ±20% (±12V) |
| Resolution |
16 bit |
| Accuracy |
±0.05% FSR |
| Zero Drift |
±0.2 μV/℃ |
| Span Drift |
±25 ppm/℃ |
| Short Circuit Protection |
Yes |
| Response Time |
<200 μS |
| Open Wire Detection |
Yes (4 ~ 20 mA) |
| Voltage Output Capability |
500 Ω |
| Current Load Resistance |
750 Ω |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Isolation |
3000 VDC |
| I/O Expansion |
| I/O Type |
DN-AIO-M |
| Mechanical |
| Dimensions (mm) |
30 x 85 x 115 |
| Weight |
300 g |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| F-8028CV CR |
8-ch Isolated AO Redundant Module (RoHS) |
