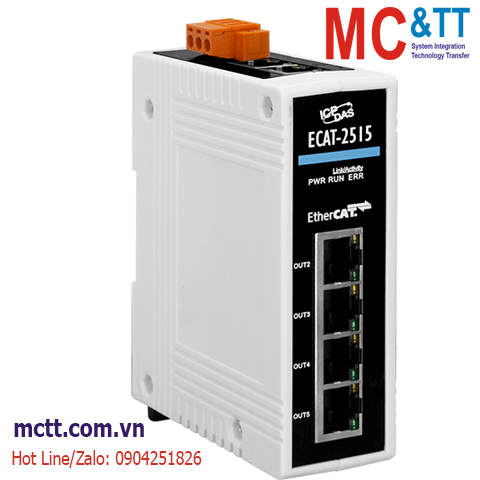

Bộ đấu nối Junction EtherCAT 1 vào - 5 ra ICP DAS ECAT-2515 CR
Feature
- Powerful MCU handles efficient network traffic
- Maximum distance between Stations can be up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
Introduction
ECAT-2515 is 1-to-5 port EtherCAT junction slave. It is designed to implement wiring deployment by daisy chain and branch more flexibly and easy to maintain.
Application
Benefit 1: Translate Daisy-chain to Branch Topology
EtherCAT junction slaves can implement wiring in branch topology. The wiring of branch topology is easier than daisy-chain topology.
Benefit 2: Improve the Debugging Efficiency
For daisy-chain topology, if a slave device is not working or the cable is disconnected, all slave devices in the same network will not be able to communicate with the master controller.
With EtherCAT junction slaves, all slave devices can be wired as separated sections. If one slave device is failed, only the slave devices in the same section will be affected. With the help of EtherCAT junction slave module, the slave devices in other sections still can communicate with the master controller. Debugging can be done separately, thus improving the debugging efficiency.
Specifications
| EtherCAT |
| Ports |
6 x RJ-45 (1 IN; 5-OUT) |
| No. of Nodes |
4 |
| Distance Between Stations |
Max. 100 m (100BASE-TX) |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.06 A @ 24 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 90 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ + 75 °C |
| Storage Temperature |
-30 ~ + 80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2515 CR |
6-Port EtherCAT Junction Slave Module (RoHS) |
