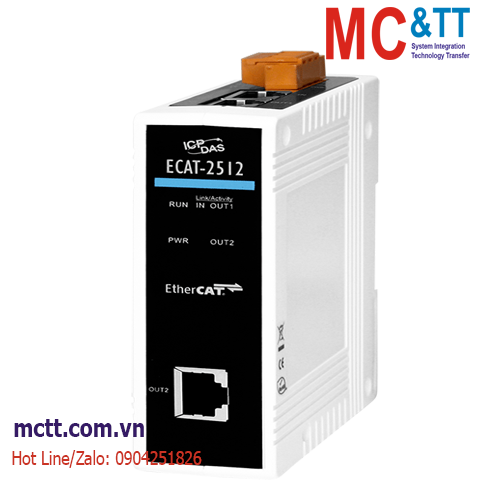

Bộ đấu nối Junction EtherCAT 1 vào - 2 ra ICP DAS ECAT-2512 CR
Feature
- Powerful MCU handles efficient network traffic
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
Introduction
ECAT-2512 is 1-to-2 port EtherCAT junction slaves. They are designed for realizing flexible wiring by daisy chain and branch. The ECAT-2512 cannot be used as a standard Ethernet switch.
Application
Specifications
| EtherCAT |
| Ports |
3 x RJ-45(1 IN; 2-OUT) |
| No. of Nodes |
1 |
| Distance Between Stations |
Max. 100 m (100BASE-TX) |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
0.06 A @ 24 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 90 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ + 75 °C |
| Storage Temperature |
-30 ~ + 80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2512 CR |
1-to-2 Port EtherCAT Junction Slave Module (RoHS) |
