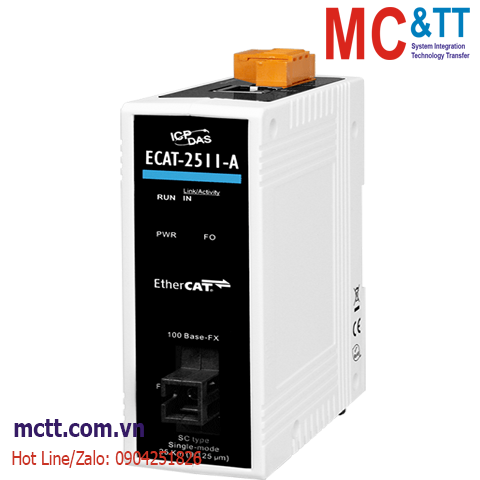

Bộ chuyển đổi EtherCAT sang Quang (1 sợi, Single Mode TX 1310 nm, RX 1550 nm, SC, 15KM) ICP DAS ECAT-2511-A CR
Feature
- Powerful MCU handles efficient network traffic
- Distance between Stations up to 25 km (100BASE-FX)
- 50% Cost Saving for Fiber Optic Infrastructures
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
Introduction
The ECAT-2511-A and ECAT-2511-B are EtherCAT to single-mode fiber optic converter. They are designed not only to convert EtherCAT signals to optical signals on a fiber optic cable, to reshape the EtherCAT signal to compensate for distortion, but to isolate the bus error due to the wire short or disturbance. With the advantage of fiber optic, the ECAT-2511-A and ECAT-2511-B enable secure data transmission via fiber optic transmission, and helps the EtherCAT network to prevent the noise from EMS/RFI interference. 50% Cost Saving for Fiber Optic Infrastructures: With a pair of ECAT-2511 series products (ECAT-2511-A and ECAT-2511-B), you can double the utilization of your existing, costly fiber optic cable, and save 50% of the cost of a newly installed fiber optic application
Application
Specifications
| Ethernet |
| Ports |
1 x RJ-45
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Fiber |
| Ports |
Single-Mode; SC connector x 1 |
| Wavelength |
TX: 1310, RX: 1550 nm |
| Distance Between Stations |
25 km (9/125 μm recommended) |
| EtherCAT |
| Ports |
1 x RJ-45, 1 x Fiber head |
| No. of Nodes |
1 |
| Distributed Clocks |
Max. 100 m (100Base-TX) |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
0.1 A @ 24 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 127 x 100 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ECAT-2511-A CR |
EtherCAT Single-Strand Media Converter, TX 1310 nm, RX 1550 nm, SC (RoHS) |
