Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.005 Nm 0.01 Nm 0.02 Nm 0.05 Nm 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 20 Nm 50 Nm 100 Nm 150 Nm Lorenz DR-2600

Chia sẻ:
Mã sản phẩm: DR-2600
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Rotating bearingless torque transducers, maintenance-free, with speed measurement, for assembly technique employments produced by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.005 Nm 0.01 Nm 0.02 Nm 0.05 Nm 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 20 Nm 50 Nm 100 Nm 150 Nm Lorenz DR-2600

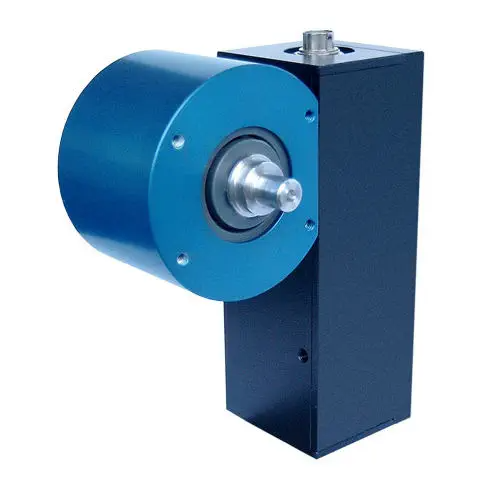

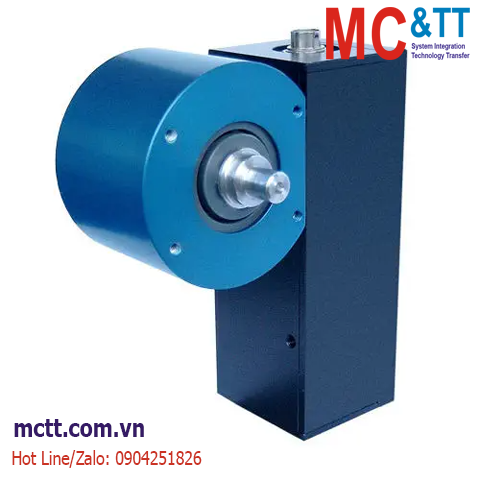

DR-2600, Digital Output Rotary Torque Sensor
The DR-2600 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.

Features:

  • Contactless Rotary Torque Sensor
  • Round Shafts
  • Connection: 8-pin Series 711 Connector with Speed
  • Digital Output RS-485

DR-2600 - Specifications

Type Rotary
Full Scale 0.005 Nm
  0.01 Nm
  0.02 Nm
  0.05 Nm
  0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
  50 Nm
  100 Nm
  150 Nm
Max Speed 20000 RPM
  30000 RPM
Output RS-485
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet): 0.005..20 N·m
50..150 N·m
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 8-pin female cable connector and free soldered ends
Connection cable, 3 m, with 8-pin female angle cable connector and free soldered ends

PDF Datasheet: DR-2500: 080897_DR-2500_en.pdf
DR-2600: 080899b_DR-2600_en.pdf
