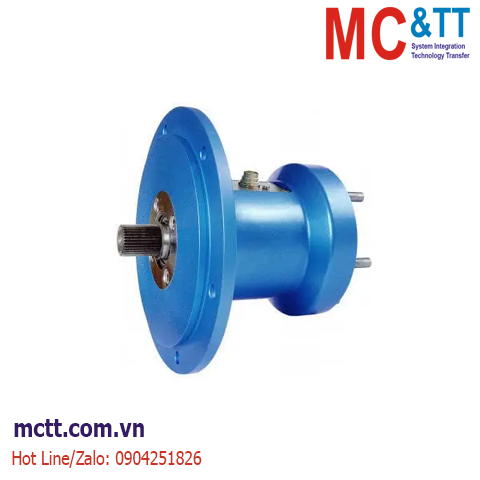

Cảm biến đo Momen xoắn trục quay không tiếp xúc 260 Nm Lorenz DR-2481

Chia sẻ:
Mã sản phẩm: DR-2481
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque transducers DR-2481, rotating contactless, with spline drive from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 260 Nm Lorenz DR-2481

DR-2481, Rotary Torque Sensor
The DR-2481 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free.

Features:

  • Contactless Rotary Torque Sensor
  • Spline Data 24 Teeth 20/30 Pitch 30" pressure angle
  • Integrated Angle/Speed Measurement
  • Connection: 6-pin Series 723 Connector

DR-2481 - Specifications

Type Rotary
Full Scale 260 Nm
Max Speed 15000 RPM
Output ±10 V DC
Precision ±0.50 % FS
Excitation 12 V - 28 V DC
Drive Side Gear Spline
Test Side Gear Spline
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080939_DR-2481_en.pdf
