Torque Transducers, Rotating, Contactless DR-2113 / DR-2413
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

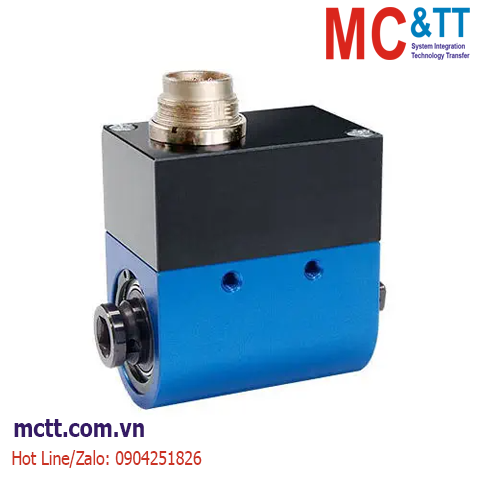

Cảm biến đo Momen xoắn trục quay không tiếp xúc 35 Nm 50 Nm 63 Nm 100 Nm 200 Nm 300 Nm 500 Nm 1000 Nm 2000 Nm 5000 Nm Lorenz DR-2413
DR-2413, Digital Output Rotary Torque Sensor
The DR-2413 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.
Features:
DR-2413 - Specifications
Type | Rotary |
Full Scale | 35 Nm |
50 Nm | |
63 Nm | |
100 Nm | |
200 Nm | |
300 Nm | |
500 Nm | |
1000 Nm | |
2000 Nm | |
5000 Nm | |
Max Speed | 1000 RPM |
1500 RPM | |
3000 RPM | |
4000 RPM | |
Output | RS-485 |
Speed/Angle (TTL) | |
Precision | ±0.10 % FS |
Excitation | 12 V - 28 V DC |
Drive Side | Square Socket |
Test Side | Square Shaft |
IP Rating | IP50 |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
---|---|
PDF Datasheet: | DR-2113: 080951a_DR-2113_en.pdf DR-2413: 080953b_DR-2413_en.pdf |
