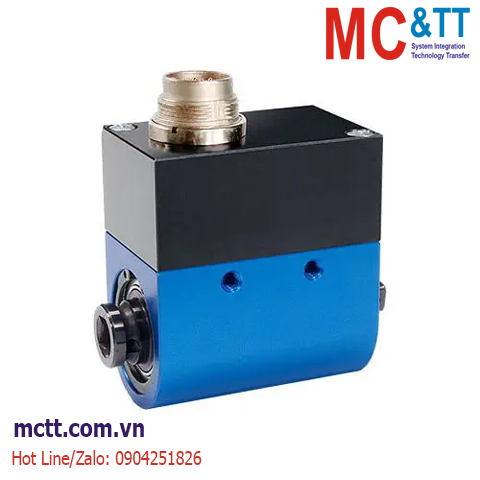

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 - 5000 Nm Lorenz DR-2113

Chia sẻ:
Mã sản phẩm: DR-2113
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque Transducers, Rotating, Contactless DR-2113 / DR-2413

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 - 5000 Nm Lorenz DR-2113

DR-2113, Analog Output Rotary Torque Sensor
The DR-2113 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. This unit operates with analog output.

Features:

  • Contactless Rotary Torque Sensor
  • Square Socket & Shaft
  • Very Short Axial Length
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Analog Output ±5V (±10V Option)

DR-2113 - Specifications

Type Rotary
Full Scale 0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  15 Nm
  20 Nm
  35 Nm
  50 Nm
  63 Nm
  100 Nm
  200 Nm
  300 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
Max Speed 1000 RPM
  1500 RPM
  2500 RPM
  3000 RPM
  4000 RPM
Output ±5 V DC
  Speed/Angle (TTL)
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Square Socket
Test Side Square Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: DR-2113: 080951a_DR-2113_en.pdf
DR-2413: 080953b_DR-2413_en.pdf
